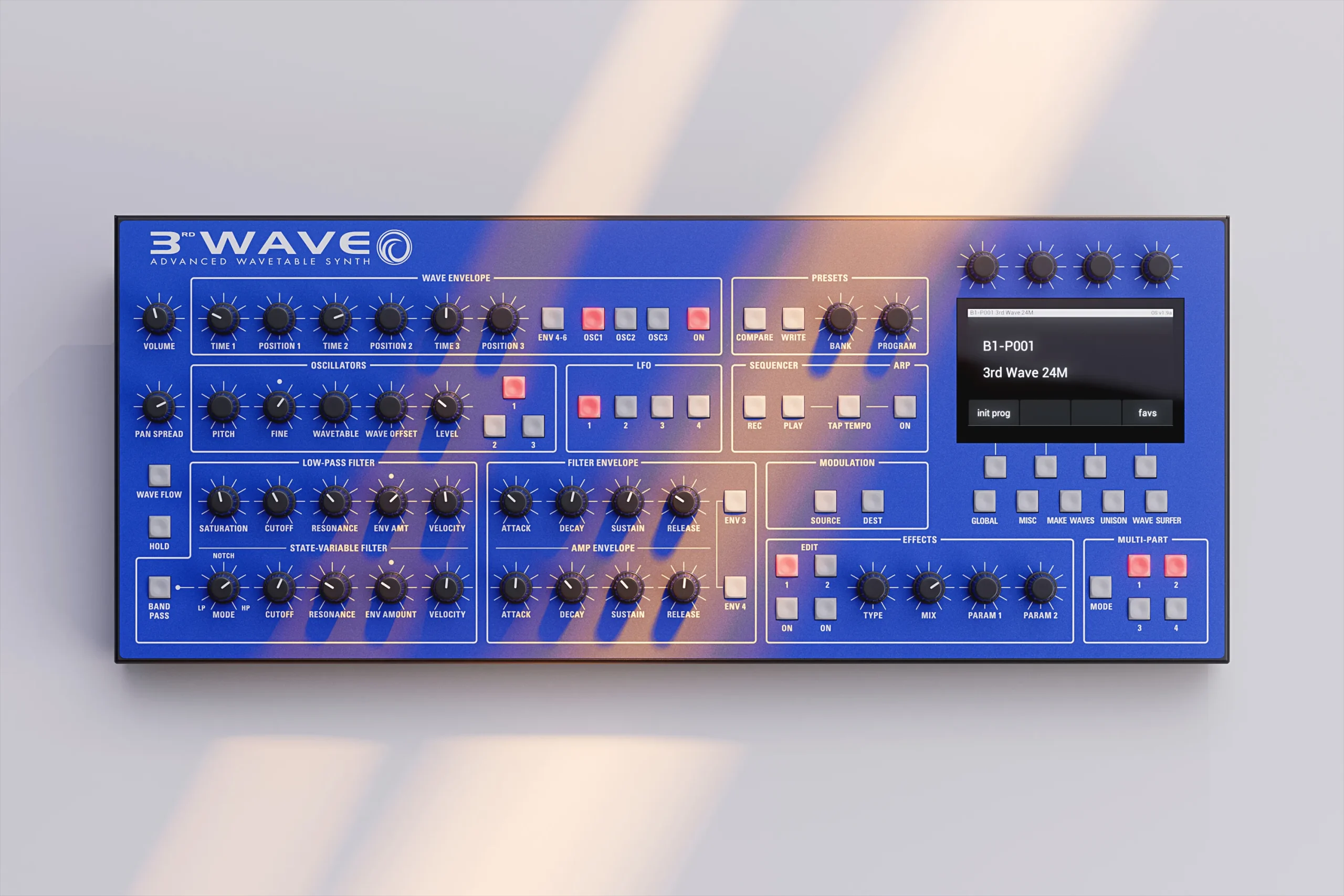

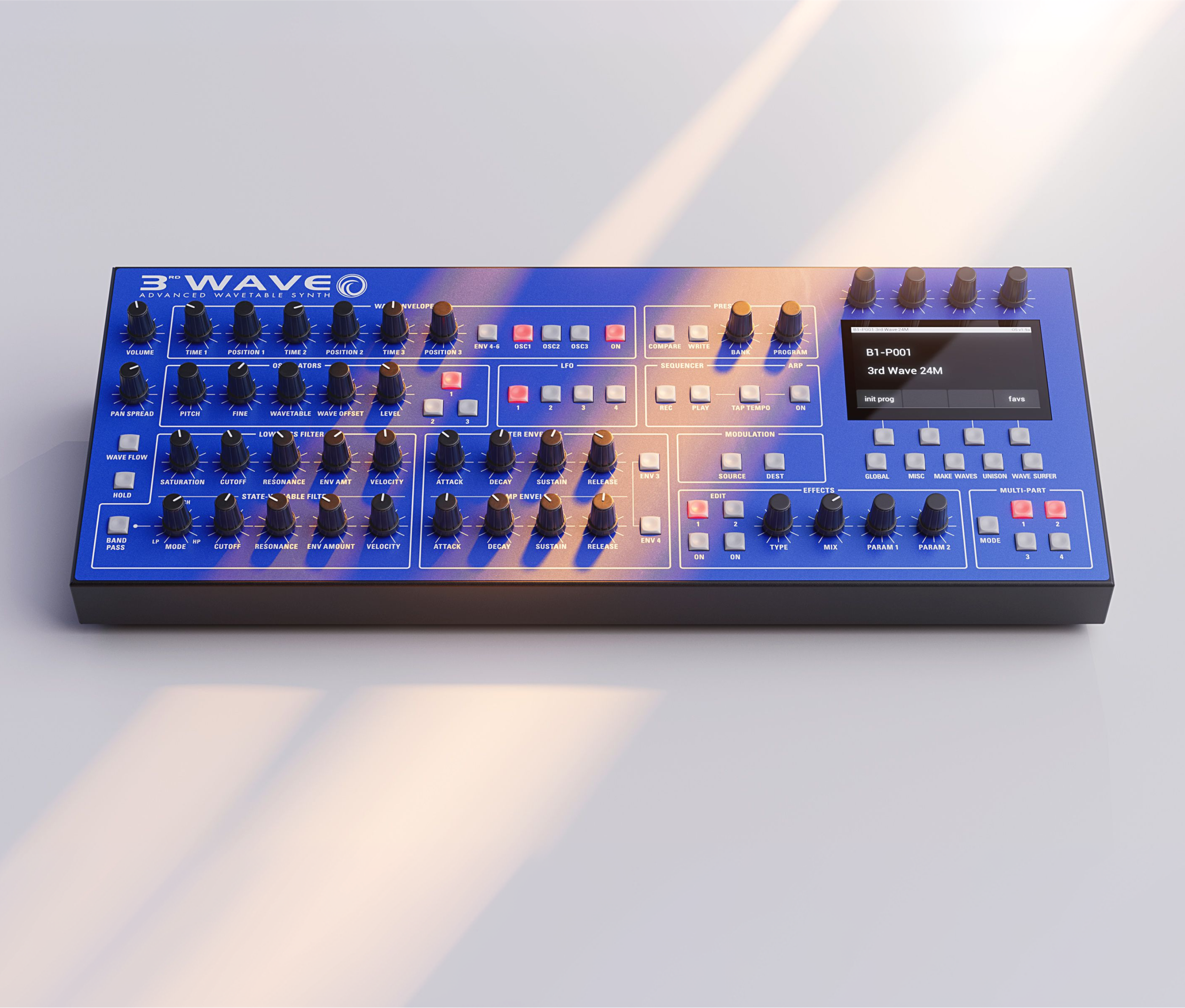

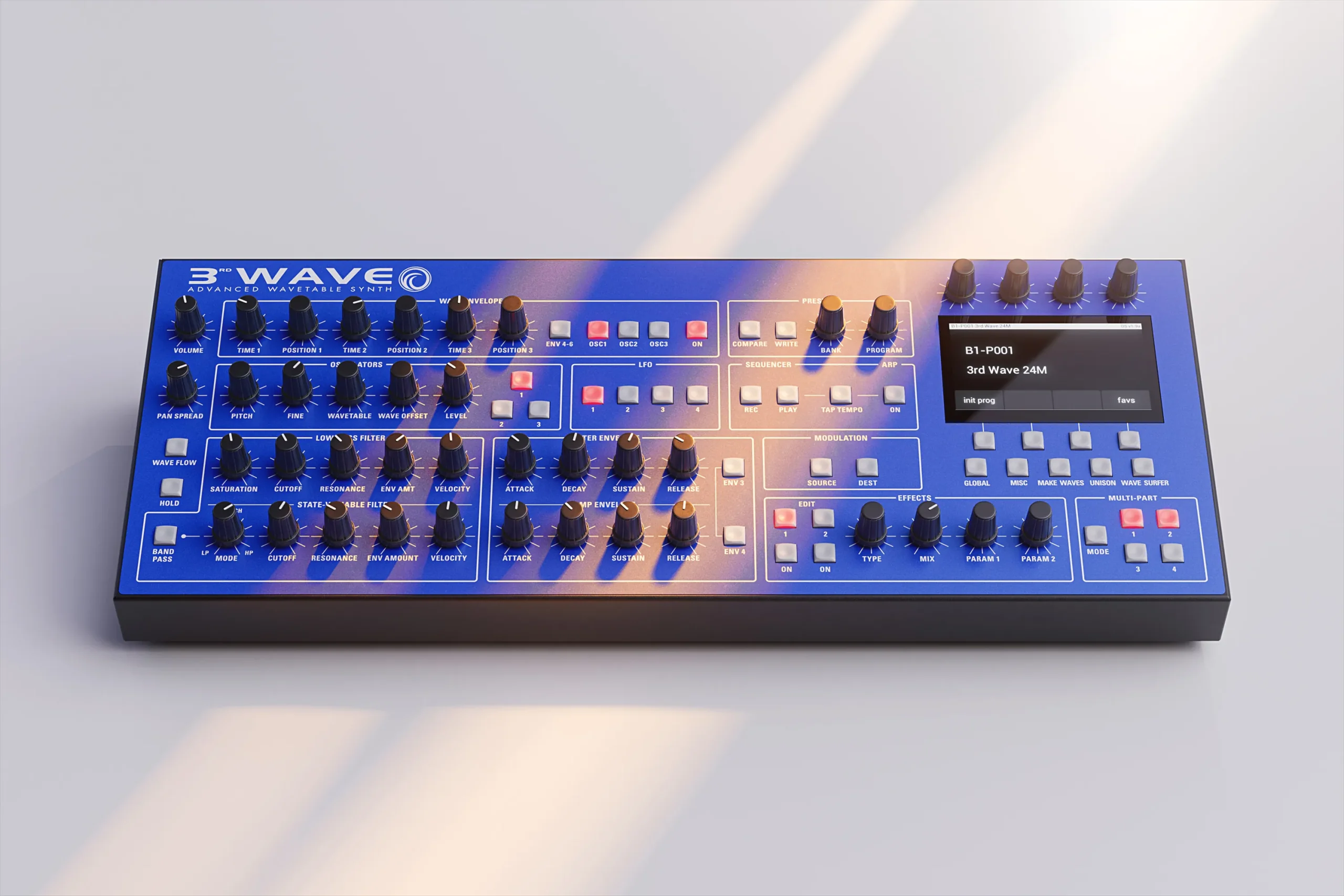

FLAGSHIP POWER. DESKTOP FORMAT.
You already have a controller you love. Maybe it’s an 88-key weighted board. Maybe it’s an Osmose or Seaboard. Maybe you’re sequencing everything from your DAW.
The 3rd Wave 24M gives you the complete flagship experience without a keyboard that you won’t use. Same 24 voices. Same four independent parts. Same analog filters and output stages. Just a smaller footprint and a friendlier price.
ZERO COMPROMISE
This isn’t a stripped-down version. The 24M runs the identical sound engine as the 24K keyboard, down to the component level: the Dave Rossum-designed 2140 analog filters, the SEM-style state-variable filters, the DC-coupled output stages, and the eight separate outputs for maximum routing flexibility.
Every patch you create on the 24M loads directly on the 24K, and vice versa. Your sounds travel with you.
FOUR PARTS. ENDLESS POSSIBILITIES.
With four independent parts, each with its own sound, sequence, effects routing, and dedicated stereo output, the 24M handles complete arrangements internally.
Layer massive pad stacks. Run four sequences simultaneously. Build entire tracks within a single preset. When you need to bounce stems, each part has its own output pair for clean separation.
Listen to the audio demos in uncompressed PCM quality below to hear the 24K in its full glory.
FIVE SYNTHESIS METHODS. EVERY SOUND.
The built-in Wavemaker lets you create up to 64 custom wavetables. Connect any audio source and generate wavetables at the touch of a button.
All five synthesis methods can be combined within a single patch, layered across oscillators to create sounds that would otherwise require multiple instruments.

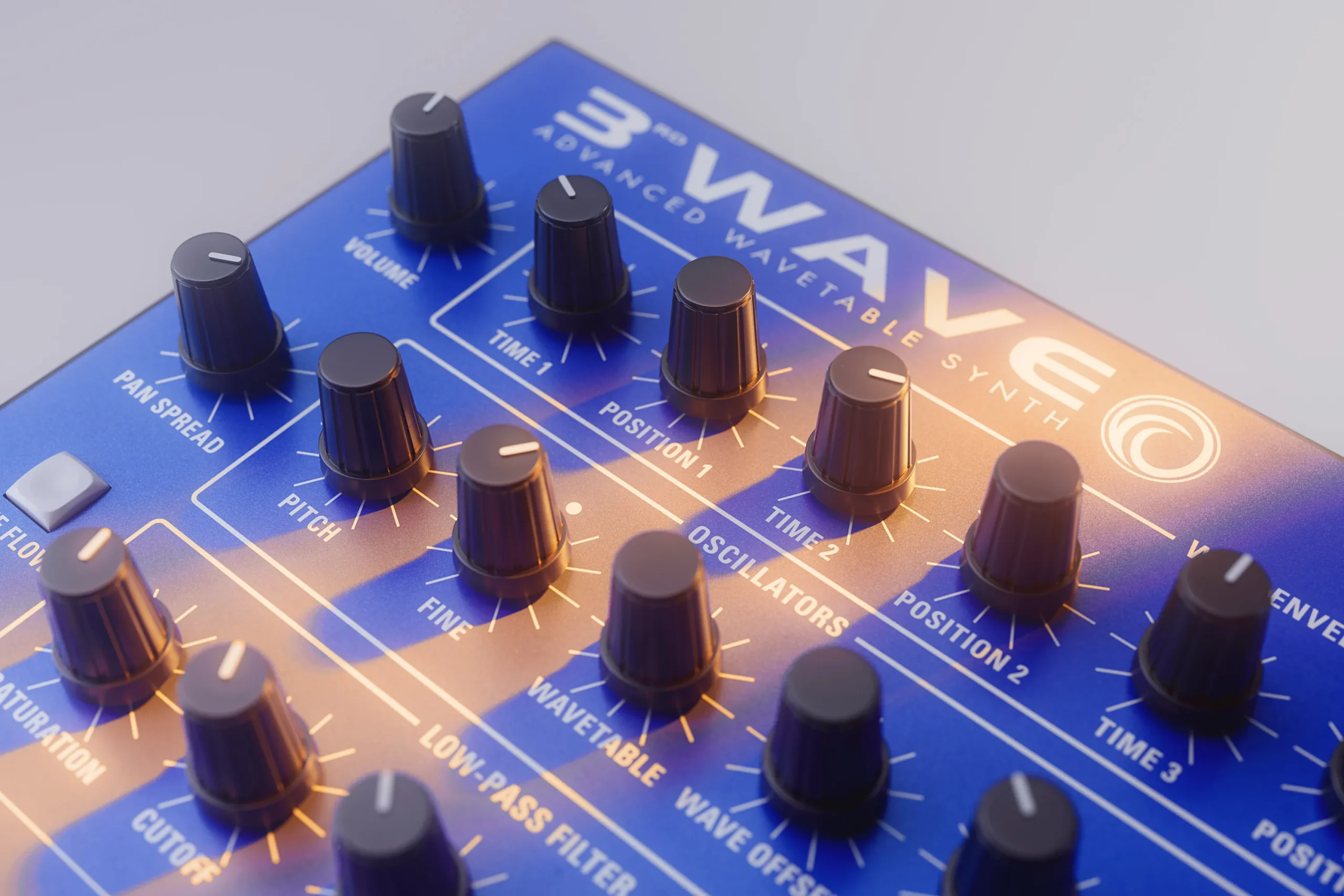

Each of the three oscillators per voice offers:
- Classic PPG-era wavetables with the authentic imaging character and processing chain
- Modern high-resolution wavetables with Serum import
- Analog-modeled waveforms for subtractive synthesis
- Linear FM for complex harmonic textures

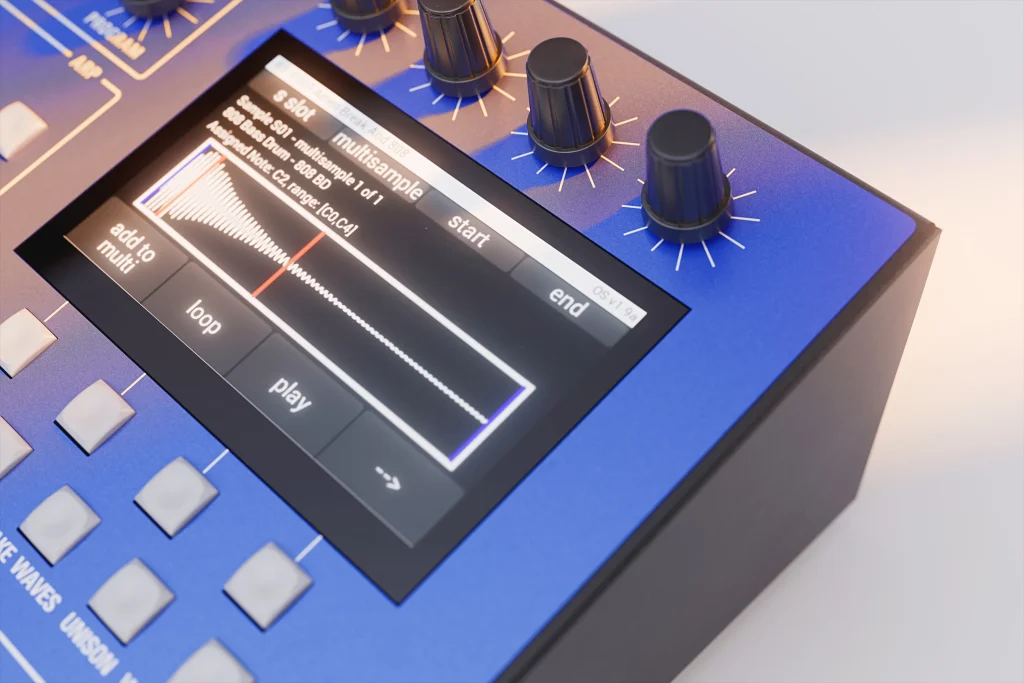

- Sampling that allows up to 8 audio samples across the keyboard
Hear the groove
GET THE LATEST GROOVE NOTES
Sign up to get our latest product news, synth tips & artist stories, and special offers to your inbox
BUILT FOR YOUR WORKFLOW
The 24M integrates seamlessly with modern production setups. Full MIDI I/O via DIN and USB. MPE and polyphonic aftertouch support for expressive controllers. Eight outputs for multitrack routing or live sound. Clock sync for hardware sequencers.
The knob-per-function panel means you can program sounds without touching a mouse. When you need to go deeper, the 5-inch display and four encoders provide fast access to every parameter.
24M DESKTOP SPECIFICATIONS
24 Voices
4 Part Multitimbral
3 High-Res, Multiple Sample Rate, Digital Oscillators Per Voice
- 64 total user wavetable locations with 56 shipping wavetables that contain 64 waveforms per table
- 32 original 8 bit wavetables from the PPG 2 series instruments with room for 16 more user created 8 bit wavetables
- 7 high-resolution modeled analog waveforms (saw, square/pulse, triangle, sine, supersaw, white noise, pink noise)
- Linear FM – 3 Operator
- Sampling. 8 way multi-part. Loopable with seamless cross fading. 35 seconds at full bandwidth
- Oscillator Hard-Sync
- Optional wave flow section: 1. Wavetable interpolation on/off 2. Waveform, (pitch), interpolation on/off 3. PPG Upper Wavetable mode on/off
- Unison mode and chord mode with variable voice count

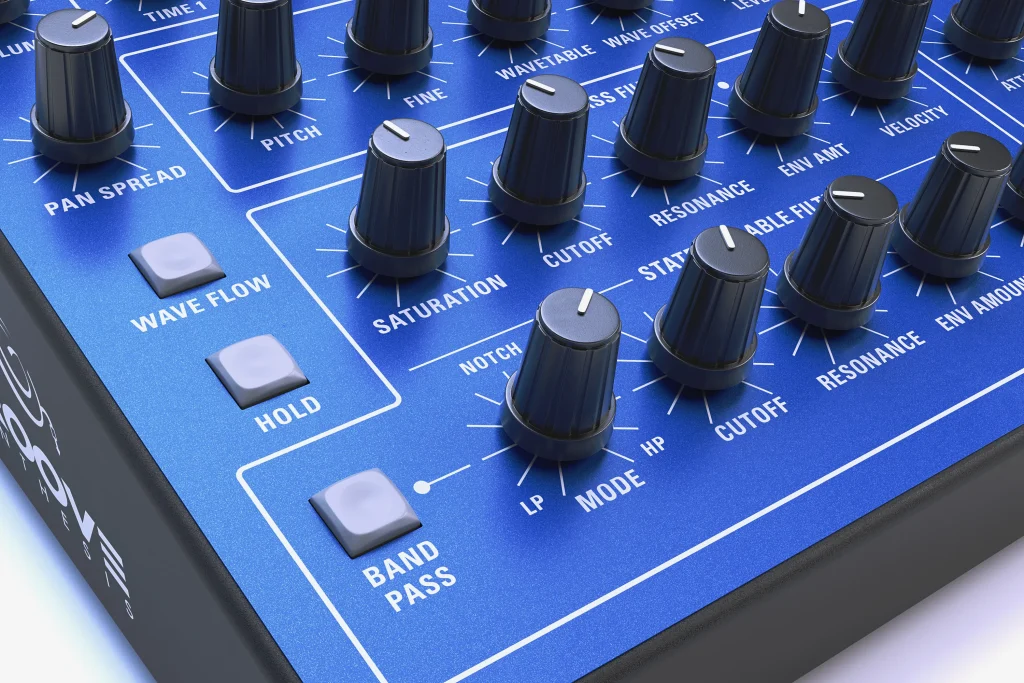

1 Analog Low-pass Filter
- Dave Rossum designed, classic, 2140 low-pass resonant filter
- 24 db per octave slope
- variable saturation amount
- optional resonance compensation
1 State-Variable Filter
- 12 db per octave slope
- Continuously variable between low-pass, notch, and high-pass, operation with optional band-pass mode

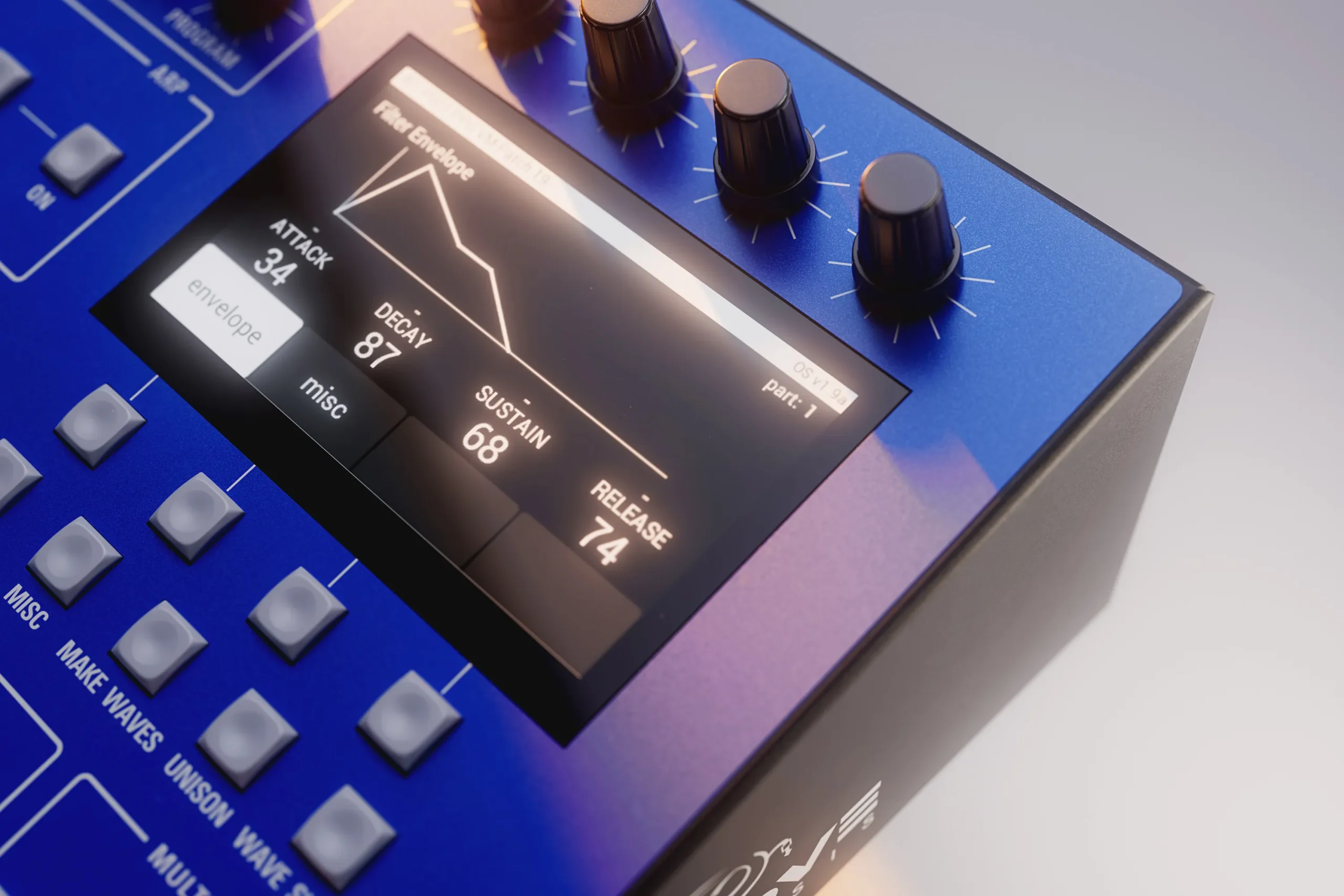

4 ADSR+ Delay Envelopes
- Filter, Amplifier, plus 2 additional envelopes switchable between exponential and vintage PPG-style response
- Freely assignable to multiple modulation destinations
- 6-stage wave envelope per oscillator with variable time and position that can be looped. Can be assigned to any destination
4 Low-Frequency Oscillators
- Triangle, sawtooth, reverse sawtooth, square, pulse 1, pulse 2, pulse 3, and random (S&H)
- Variable delay
- Note reset or free running
- Syncable to master clock BPM
- LFOs can be polyphonic or mono
2 digital effects (per part)
- BBD, stereo delay, tape delay, chorus, phaser, flanger, distortion pedal, rotating speaker with tube model, ring mod, room reverb, hall reverb, super plate reverb – Most modeled on famous hardware devices
- Syncable to master clock BPM
- Parameters modulatable via mod matrix

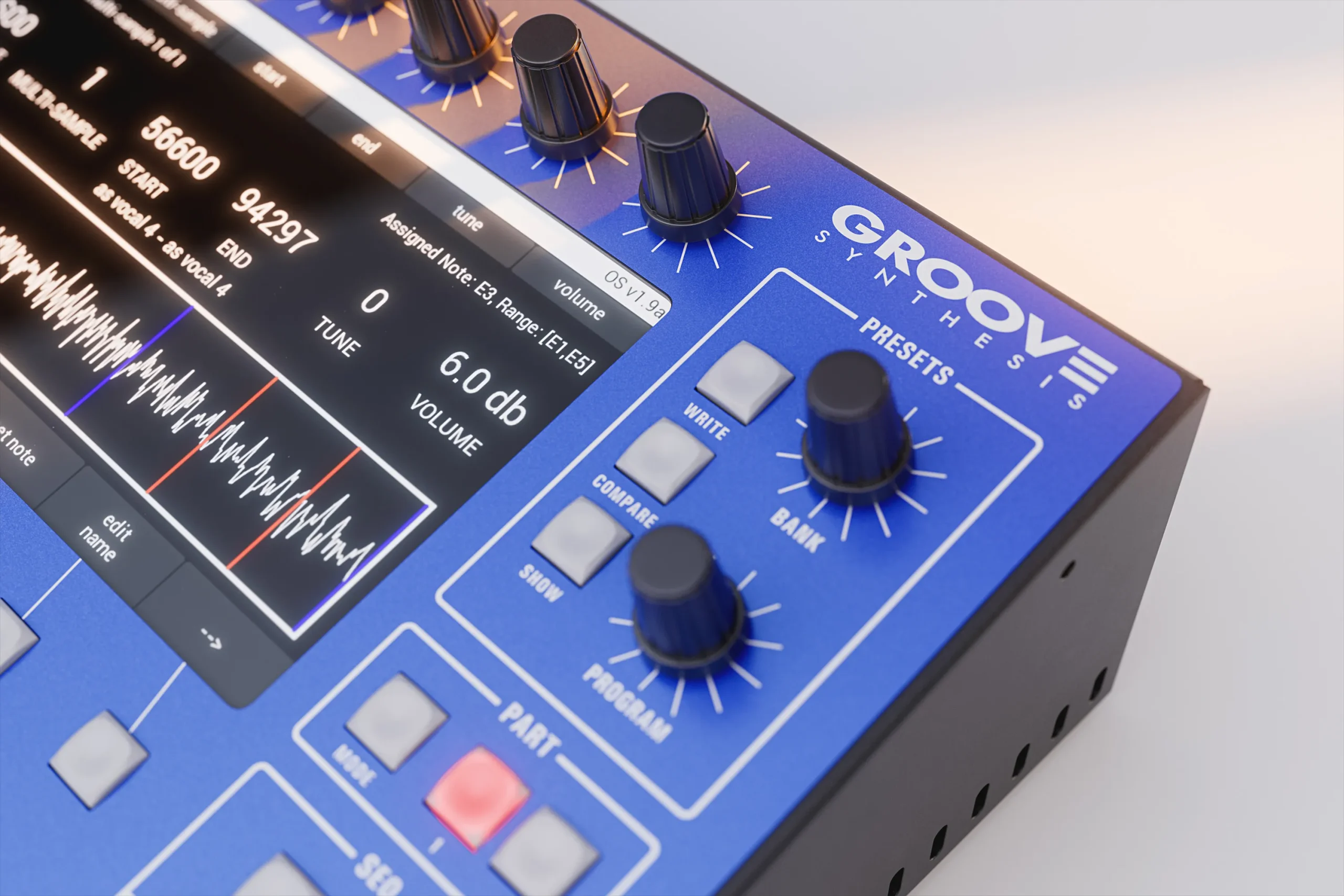

Built-In Custom Wavetable Maker
- “Sample-to-wave” functionality. Connect an audio source to the 3rd Wave’s Audio In port, press “Make Waves” and the audio is analyzed to create a custom wavetable
- Audio to convert is brought in as a 96 kHz wav file through USB
- Store up to 64 custom wavetables
- 64 waveforms per wavetable
- Accepts pitched or un-pitched material as input
- 96 kHz sampling rate
- 16, 24, or 32-bit resolution
- Audio up to 20 seconds can be analyzed
- Imports Serum™ wavetables

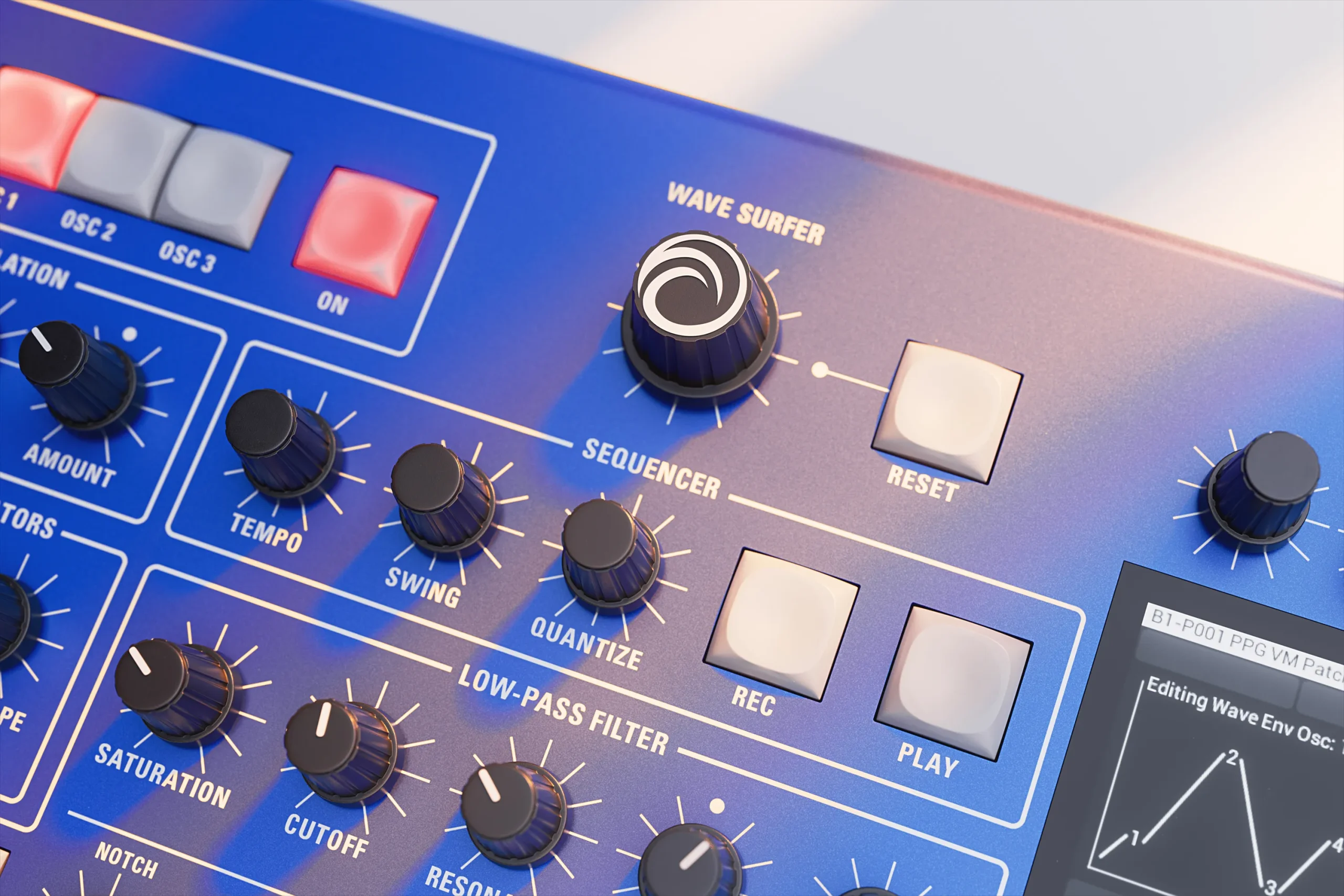

Pattern based with song mode
- Performs both Note and Parameter Sequencing
- 4 parts per sequence
- 24 patterns per 3rd Wave program
- Up to 32 measures per sequence
- Variable quantization resolution per sequence (32nd, 16th, 8th, quarter, half, whole note, or quantization off), that is settable in real time
- Variable swing
1 Arp per Multi-part
- Up, down, up/down, assign modes, and random
- Variable range (1, 2, or 3 octaves)
16 slot modulation matrix with 30 mod sources and 127 mod destinations
- 12 additional fixed-source mod paths with the same number of sources and destinations
- Modulation assignment buttons enable quick and easy modulation routing
- Mod Matrix runs at audio rates
- Sequencer can record and play mod parameter changes in real time
41 knobs and 43 buttons enable close to knob per function with minimal menu diving
- Responds to polyphonic after touch
- Responds to MPE (MIDI Polyphonic Expression)
500 factory programs. User rewritable

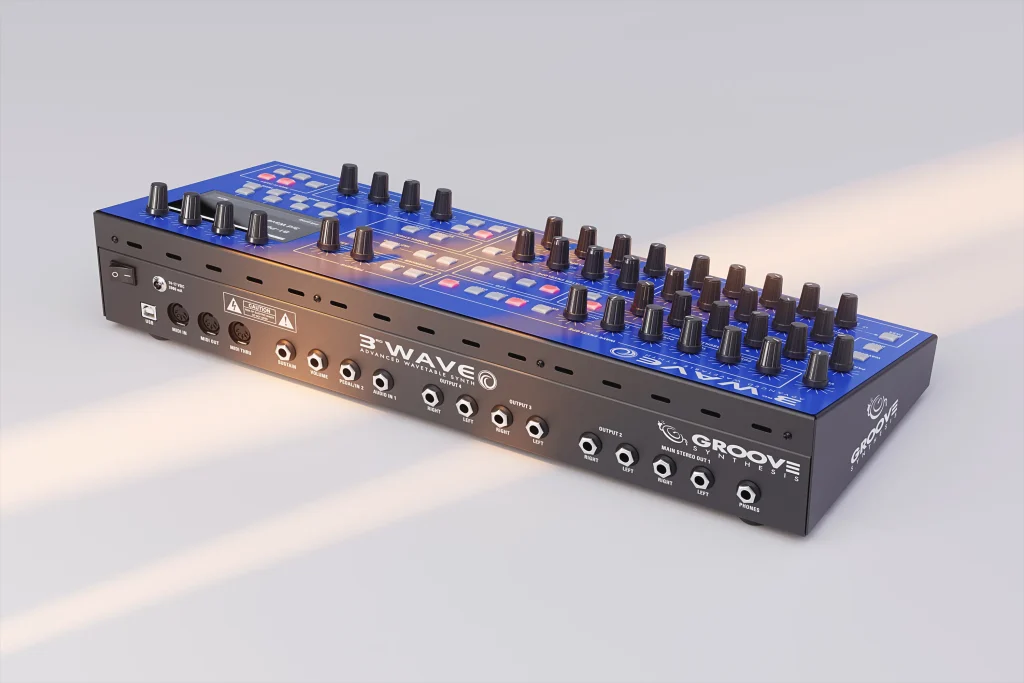

4 Stereo outputs (2x 1/4″ phone jack per part)
- Headphone out (stereo 1/4″ phone jack)
- MIDI In, MIDI Out, and MIDI Thru
- USB port for bidirectional MIDI communication
- Audio Input for creating user wavetables from external audio source (1/4″ phone jack). Audio Input can also route audio through the filters, Output chain, and effects
- Sustain/footswitch input
- Volume pedal input
- Expression pedal input
External universal input power supply (100-240V) 15 volt 45 watts
Shipping Box Dimmensions Imperial Units: 28” x 16” x 11” inches
Shipping Box Dimensions Metric: 71 cm x 41 cm x 28 cm
Shipping Weight Imperial Units: 15.5 lbs
Shipping Weight Metric: 7 kg
No
SUPPORT Resources
Still got questions? Visit our support page for more resources such as product manuals, software downloads, and FAQs.

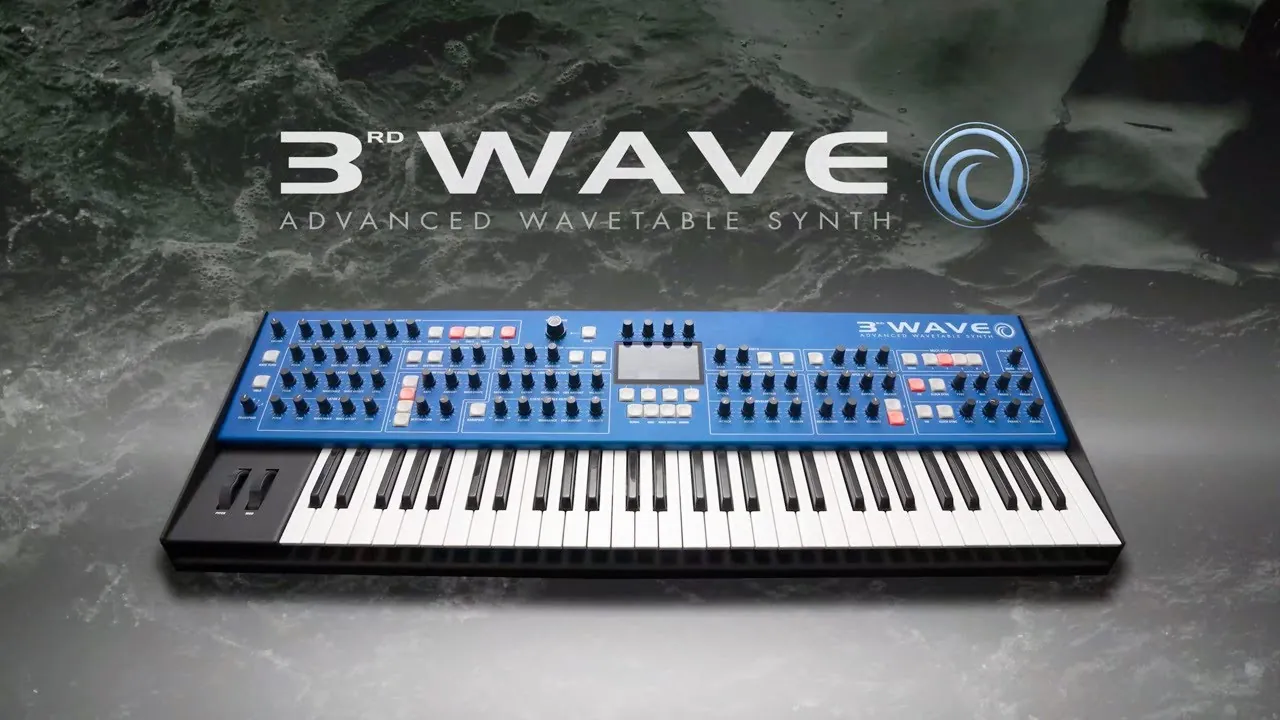

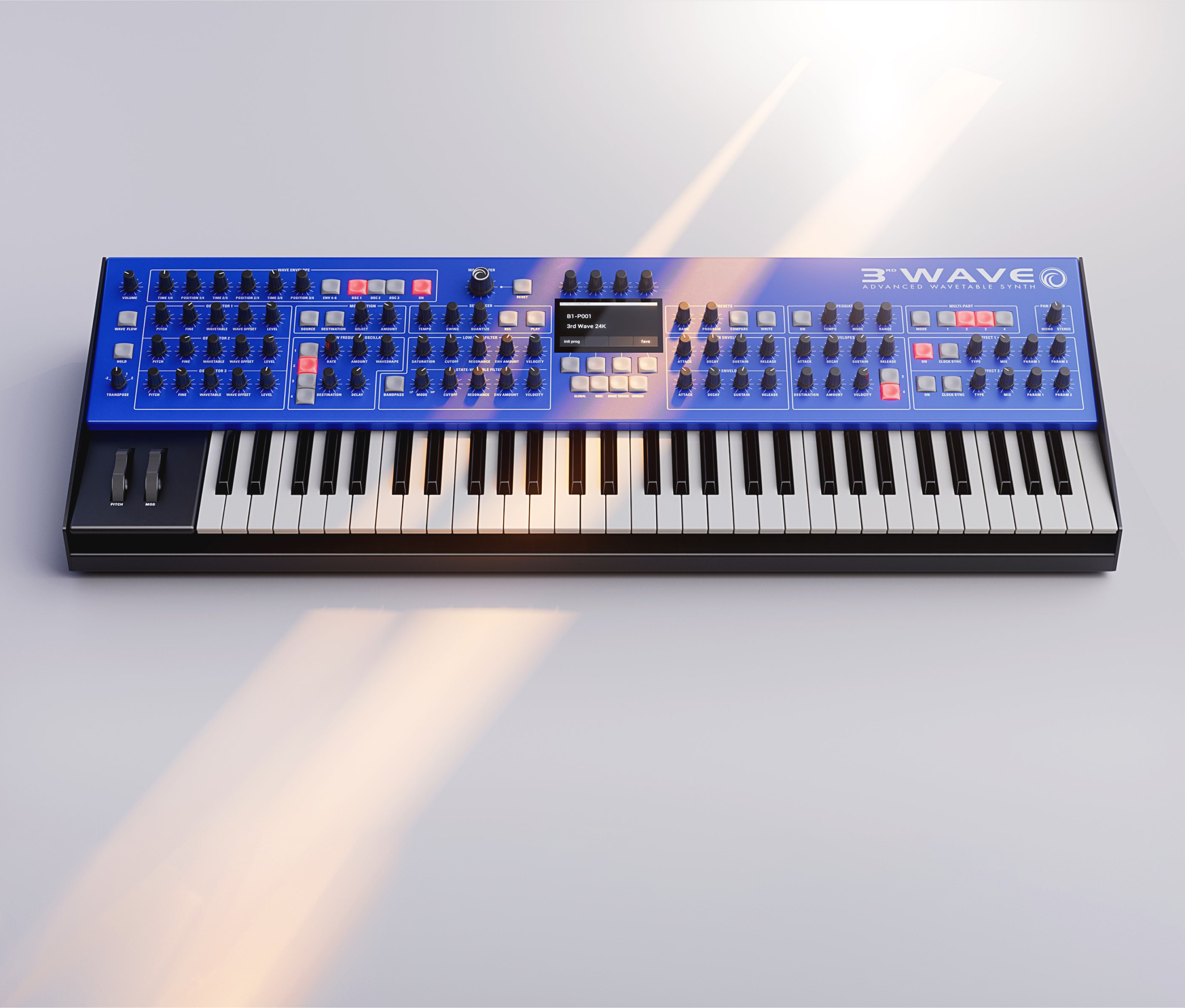

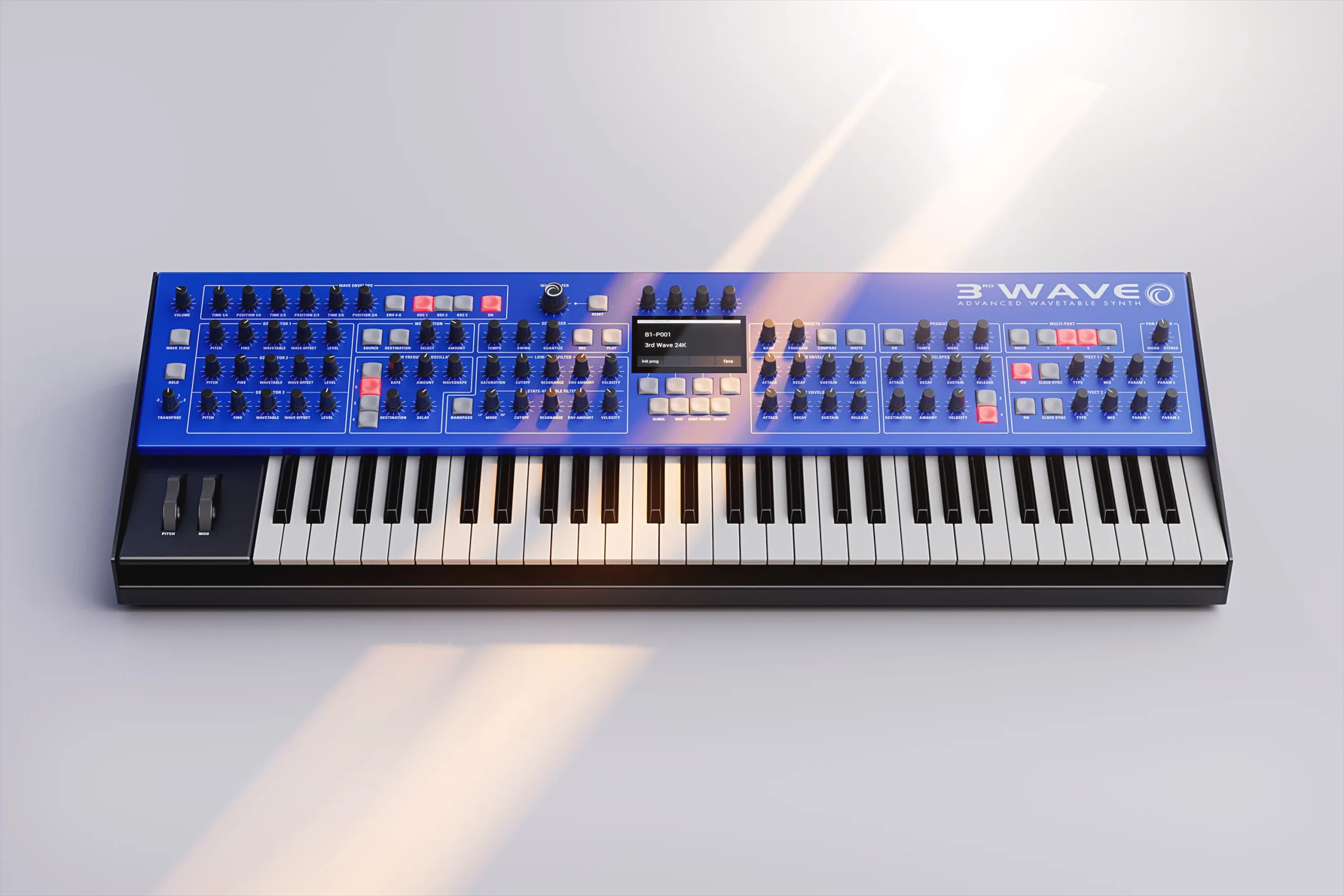

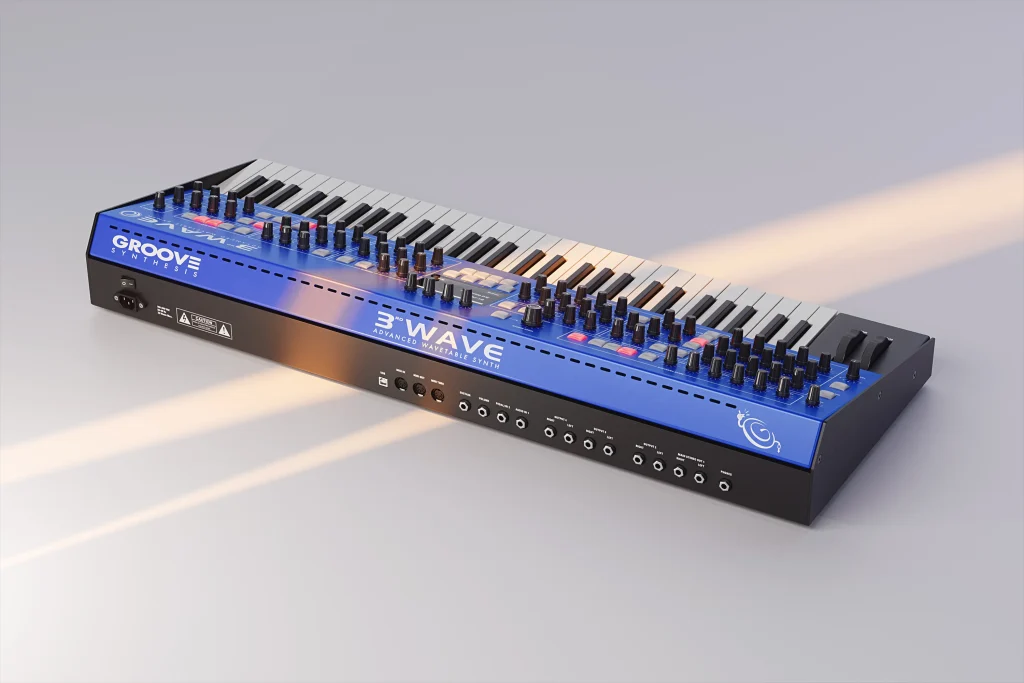

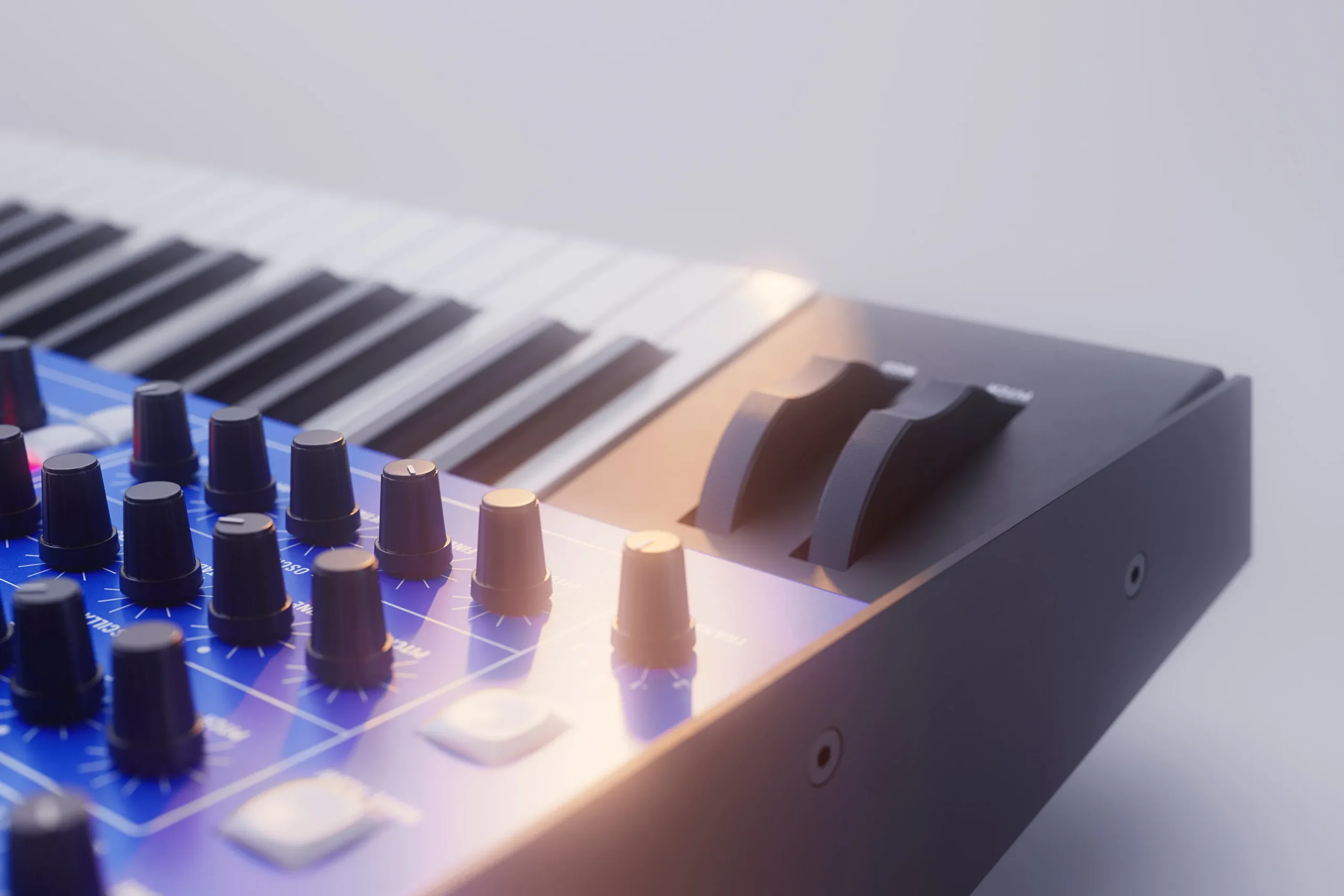

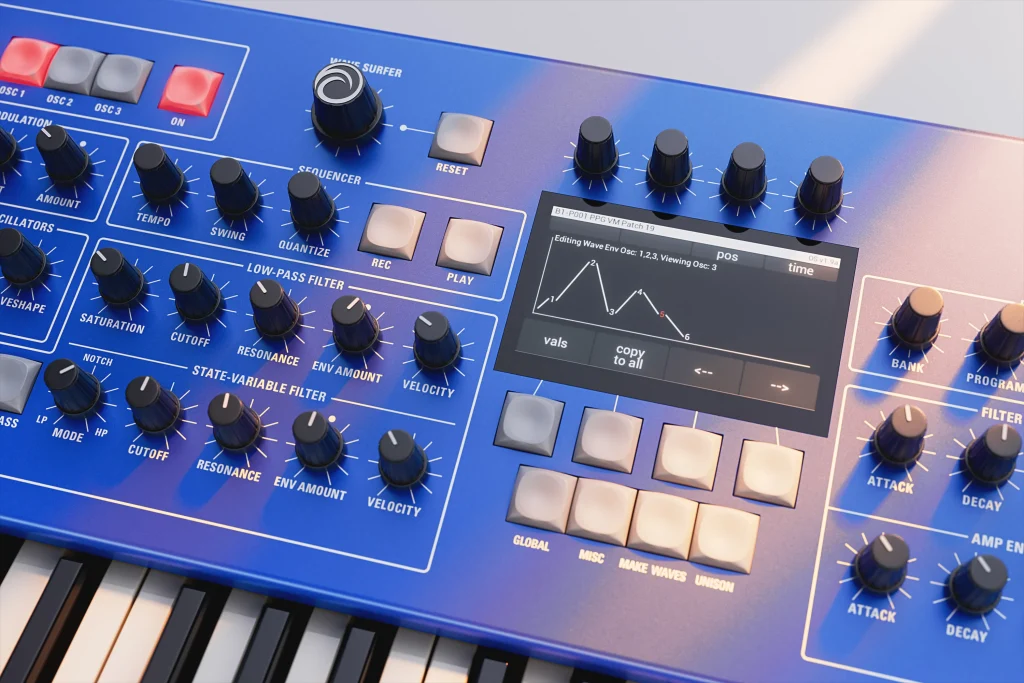

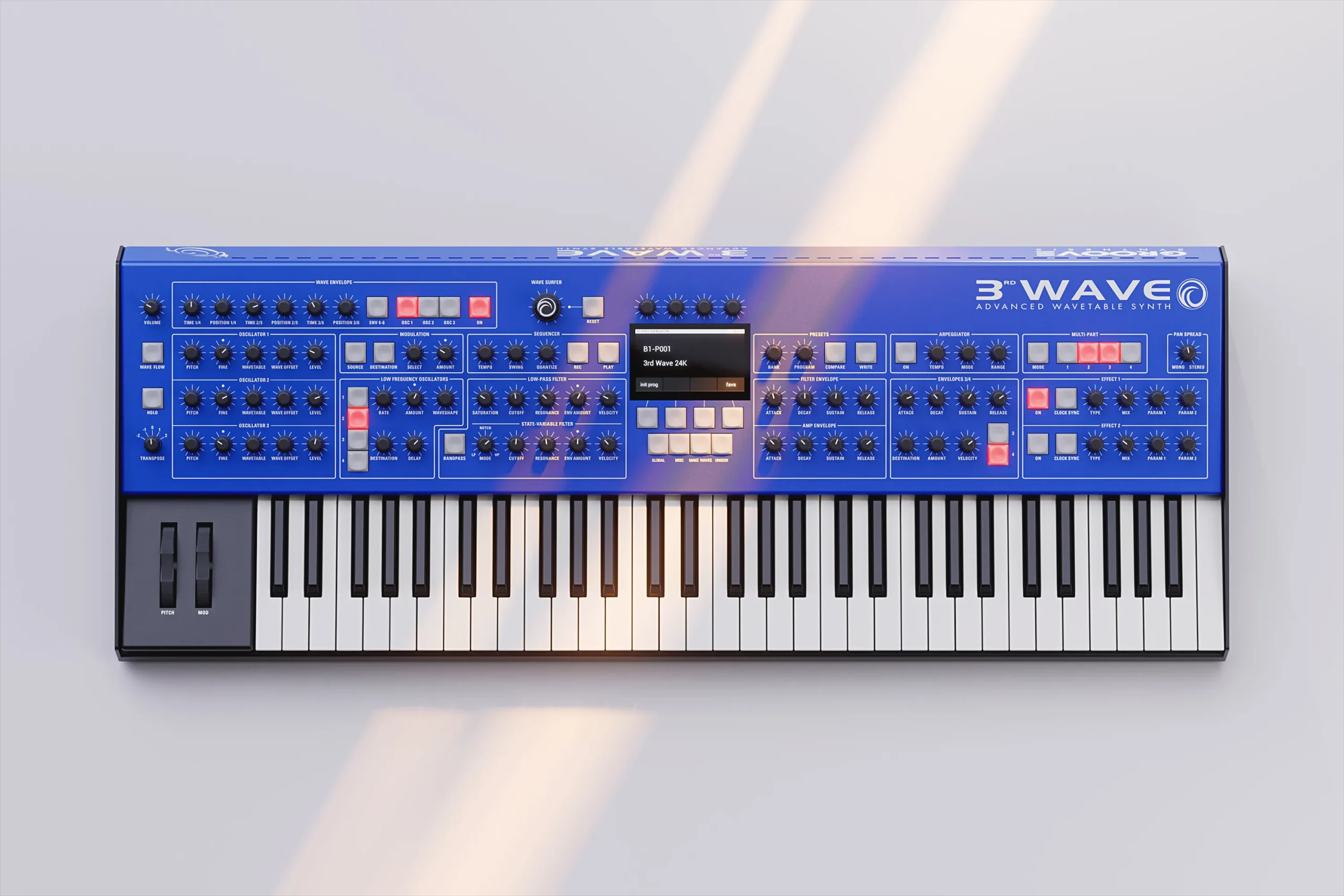

THE COMPLETE CREATIVE INSTRUMENT
The 3rd Wave 24K is where decades of synthesis evolution meet uncompromising design. Built for professional keyboardists, composers, and studios where the synthesizer isn’t just another piece of gear but the creative centerpiece.
Twenty-four voices. Four independent parts. A 61-key Fatar keybed with velocity and aftertouch. Every parameter is accessible through dedicated controls in a knob-per-function layout. This is synthesis without barriers.
FOUR SYNTHESIZERS IN ONE
Each of the 24K’s four parts operates as a complete, independent synthesizer with its own sound, sequence, pair of effects, and dedicated stereo output.
Layer orchestral pads beneath aggressive leads. Split bass and keys across the keyboard. Run four different sequences simultaneously. Film composer Drew Neumann was able to use all four parts to recreate the impossibly rich soundscapes that defined Æon Flux. That same depth is waiting for your next project.
THE ANALOG DIFFERENCE
At the heart of every voice is a Dave Rossum-designed SSI2140 analog lowpass filter with variable saturation that is paired with an SEM-style state-variable filter offering lowpass, highpass, notch, and bandpass modes. Run them in series for harmonically complex textures.
.
The DC-coupled output stages deliver low-end power you don’t just hear but feel. This is the signal path that defines the Groove Synthesis sound, present in every voice, every part, every note.
Listen to the audio demos in uncompressed PCM quality below to hear the 24K in its full glory.
SYNTHESIS WITHOUT LIMITS
The built-in Wavemaker lets you create up to 64 custom wavetables. Connect any audio source and generate wavetables at the touch of a button.
All five synthesis methods can be combined within a single patch, layered across oscillators to create sounds that would otherwise require multiple instruments.
Listen to the audio demos in uncompressed PCM quality below to hear the 24K in its full glory.
Each of the three oscillators per voice can independently run:
- Classic PPG-era wavetables with the authentic processing chain and imaging character
- High-resolution modern wavetables that will make a wavetable from your audio, and that allow Serum wavetable import
- Analog-modeled waveforms for classic subtractive synthesis
- Three operator linear FM per part for metallic, bell-like, and complex harmonic textures
- Sampling audio sources that allow up to 8 samples across the keyboard
Hear the groove
MODULATION DEPTH
Sixteen assignable modulation slots. Twelve additional fixed-source slots. Twenty-seven sources. One hundred twenty-seven destinations – per part.
This is modular-synth flexibility in a self-contained instrument, with the ability to save and recall everything you create.
GET THE LATEST GROOVE NOTES
Sign up to get our latest product news, synth tips & artist stories, and special offers to your inbox

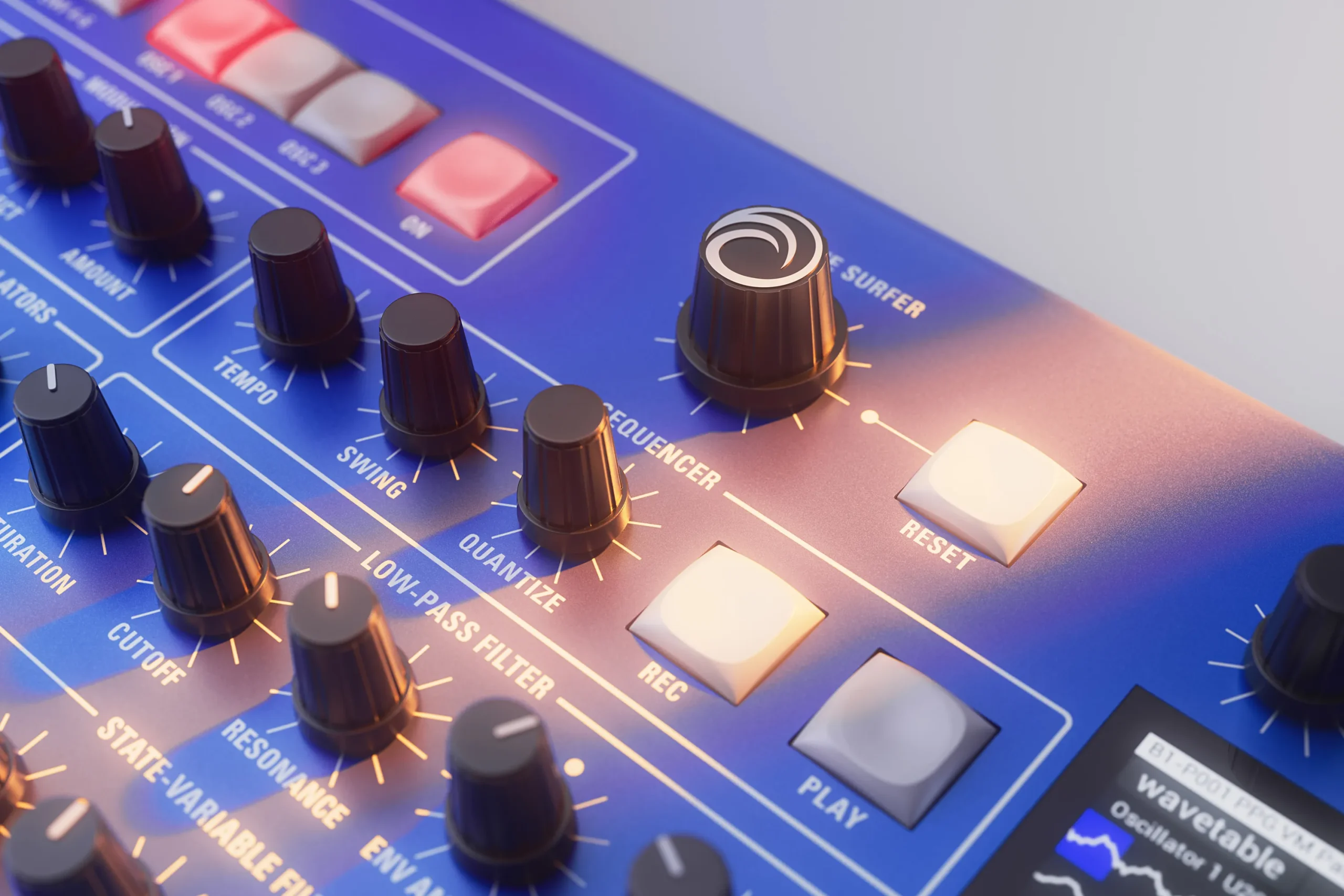

SEQUENCER & PERFORMANCE
The pattern-based sequencer handles notes, chords, and parameter automation across 24 patterns with up to 32 measures for each pattern. Enter in real time with adjustable quantization, then arrange patterns into complete songs.
For live performance, the knob-per-function layout means every tweak happens in the moment, not buried in menus.
MPE and polyphonic aftertouch support capture every nuance from compatible controllers.
24K KEYBOARD SPECIFICATIONS
24 Voices
4 Part Multitimbral
3 High-Res, Multiple Sample Rate, Digital Oscillators Per Voice
- 64 total user wavetable locations with 56 shipping wavetables that contain 64 waveforms per table
- 32 original 8 bit wavetables from the PPG 2 series instruments with room for 16 more user created 8 bit wavetables
- 7 high-resolution modeled analog waveforms (saw, square/pulse, triangle, sine, supersaw, white noise, pink noise)
- Linear FM – 3 Operator
- Sampling. 8 way multi-part. Loopable with seamless cross fading. 35 seconds at full bandwidth
- Oscillator Hard-Sync
- Optional wave flow section: 1. Wavetable interpolation on/off 2. Waveform, (pitch), interpolation on/off 3. PPG Upper Wavetable mode on/off
- Unison mode and chord mode with variable voice count
1 Analog Low-pass Filter
- Dave Rossum designed, classic, 2140 low-pass resonant filter
- 24 db per octave slope
- variable saturation amount
- optional resonance compensation
1 State-Variable Filter
- 12 db per octave slope
- Continuously variable between low-pass, notch, and high-pass, operation with optional band-pass mode
4 ADSR+ Delay Envelopes
- Filter, Amplifier, plus 2 additional envelopes switchable between exponential and vintage PPG-style response
- Freely assignable to multiple modulation destinations
- 6-stage wave envelope per oscillator with variable time and position that can be looped. Can be assigned to any destination
4 Low-Frequency Oscillators
- Triangle, sawtooth, reverse sawtooth, square, pulse 1, pulse 2, pulse 3, and random (S&H)
- Variable delay
- Note reset or free running
- Syncable to master clock BPM
- LFOs can be polyphonic or mono
2 digital effects (per part)
- BBD, stereo delay, tape delay, chorus, phaser, flanger, distortion pedal, rotating speaker with tube model, ring mod, room reverb, hall reverb, super plate reverb – Most modeled on famous hardware devices
- Syncable to master clock BPM
- Parameters modulatable via mod matrix
Built-In Custom Wavetable Maker
- “Sample-to-wave” functionality. Connect an audio source to the 3rd Wave’s Audio In port, press “Make Waves” and the audio is analyzed to create a custom wavetable
- Audio to convert is brought in as a 96 kHz wav file through USB
- Store up to 64 custom wavetables
- 64 waveforms per wavetable
- Accepts pitched or un-pitched material as input
- 96 kHz sampling rate
- 16, 24, or 32-bit resolution
- Audio up to 20 seconds can be analyzed
- Imports Serum™ wavetables
Pattern based with song mode
- Performs both Note and Parameter Sequencing
- 4 parts per sequence
- 24 patterns per 3rd Wave program
- Up to 32 measures per sequence
- Variable quantization resolution per sequence (32nd, 16th, 8th, quarter, half, whole note, or quantization off), that is settable in real time
- Variable swing
1 arpeggio pattern for each part
- Up, down, up/down, assign modes, and random
- Variable range (1, 2, or 3 octaves)
16 slot modulation matrix with 30 mod sources and 127 mod destinations
- 12 additional fixed-source mod paths with the same number of sources and destinations
- Modulation assignment buttons enable quick and easy modulation routing
- Mod Matrix runs at audio rates
- Sequencer can record and play mod parameter changes in real time
77 knobs and 39 buttons enable knob per function with virtually no menu

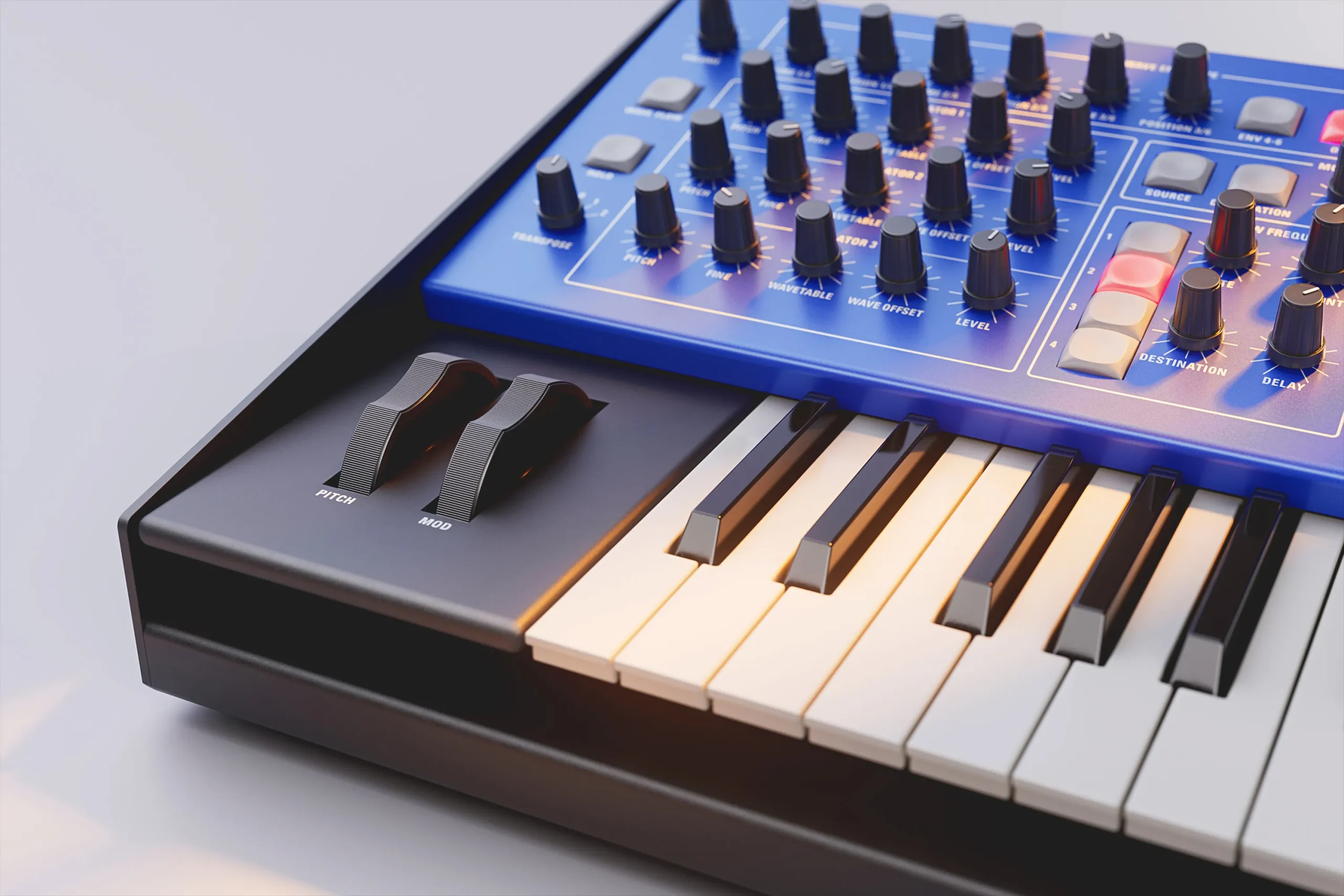

- Pitch and Mod Wheels
- Full-sized, five-octave, semi-weighted, premium Fatar keyboard with velocity and aftertouch
- Responds to polyphonic after touch
- Responds to MPE (MIDI Polyphonic Expression)
500 factory programs. User rewritable
4 Stereo outputs (2x 1/4″ phone jack per part)
- Headphone out (stereo 1/4″ phone jack)
- MIDI In, MIDI Out, and MIDI Thru
- USB port for bidirectional MIDI communication
- Audio Input for creating user wavetables from external audio source (1/4″ phone jack). Audio Input can also route audio through the filters, output chain, and effects
- Sustain/footswitch input
- Volume pedal input
- Expression pedal input
1 universal IEC AC power inlet for internal power supply
- Operates worldwide on voltages between 100-240v, 50-60 Hz, 65 watts maximum power consumption
- Shipping Box Dimensions Imperial Units: 44″ x 20″ x 13″ inches
- Shipping Box Dimensions Metric: 112 cm x 54 cm x 33 cm
- Shipping Weight Imperial Units: 35 lbs
- Shipping Weight Metric: 16 kg
No
SUPPORT Resources
Still got questions? Visit our support page for more resources such as product manuals, software downloads, and FAQs.

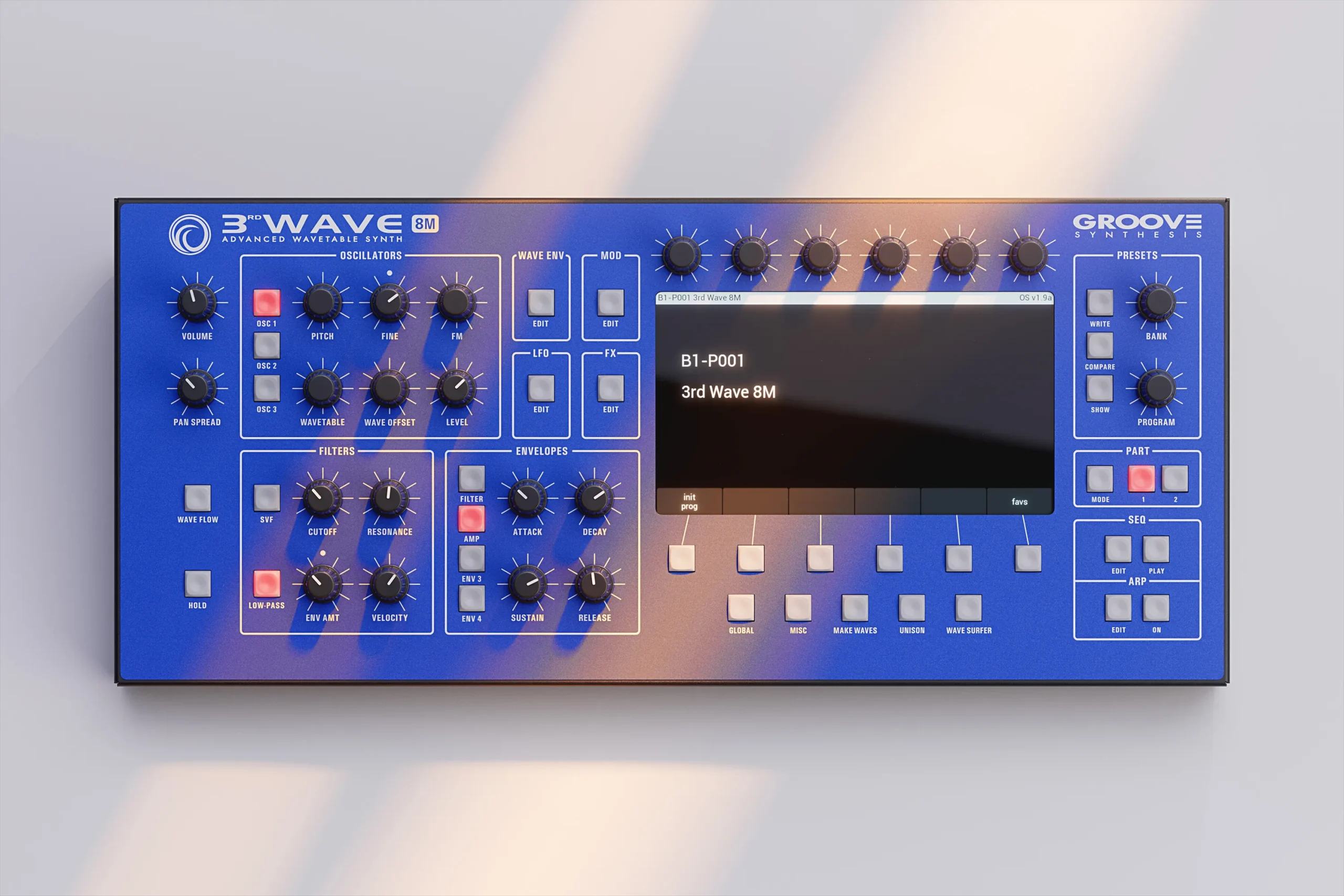

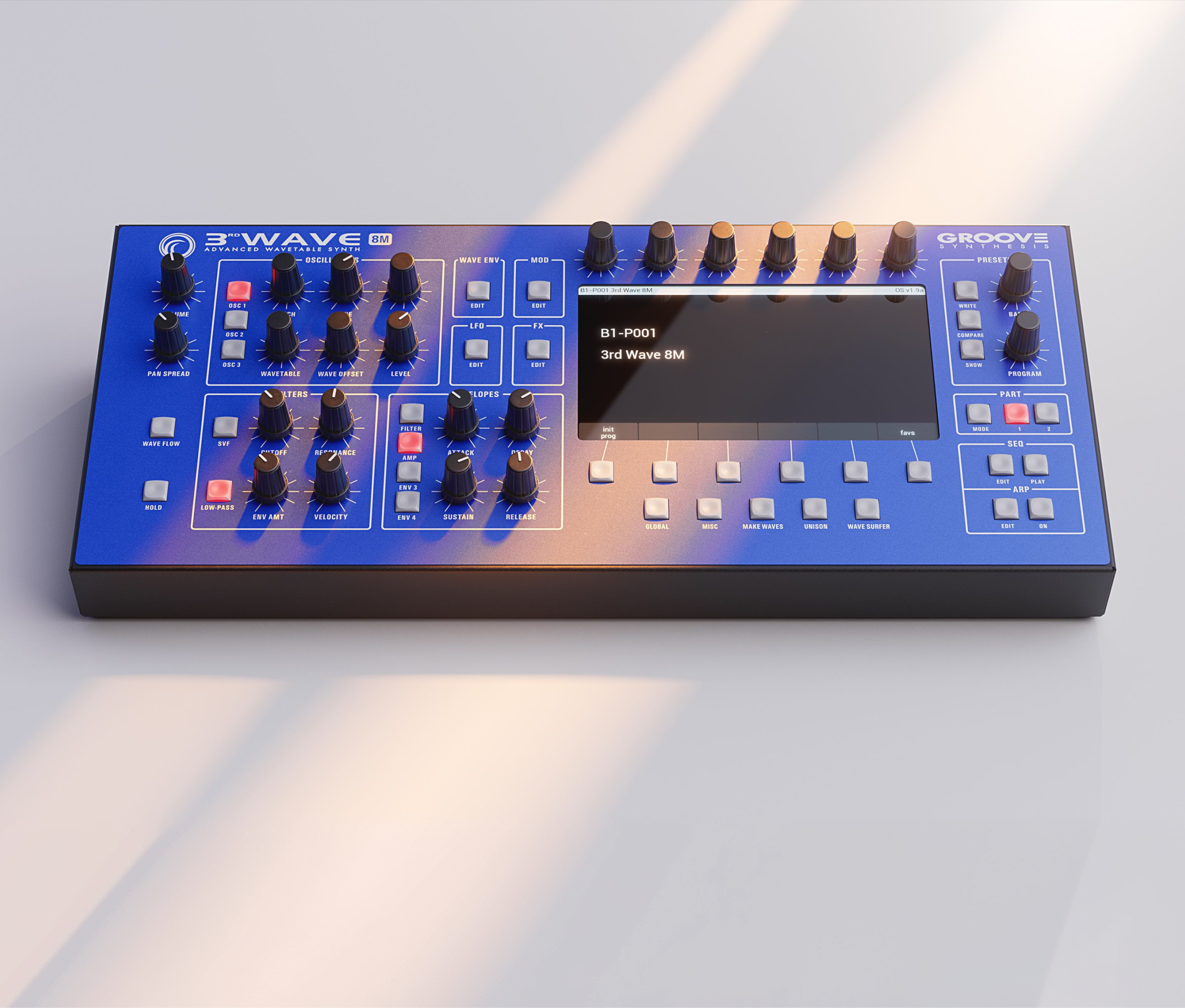

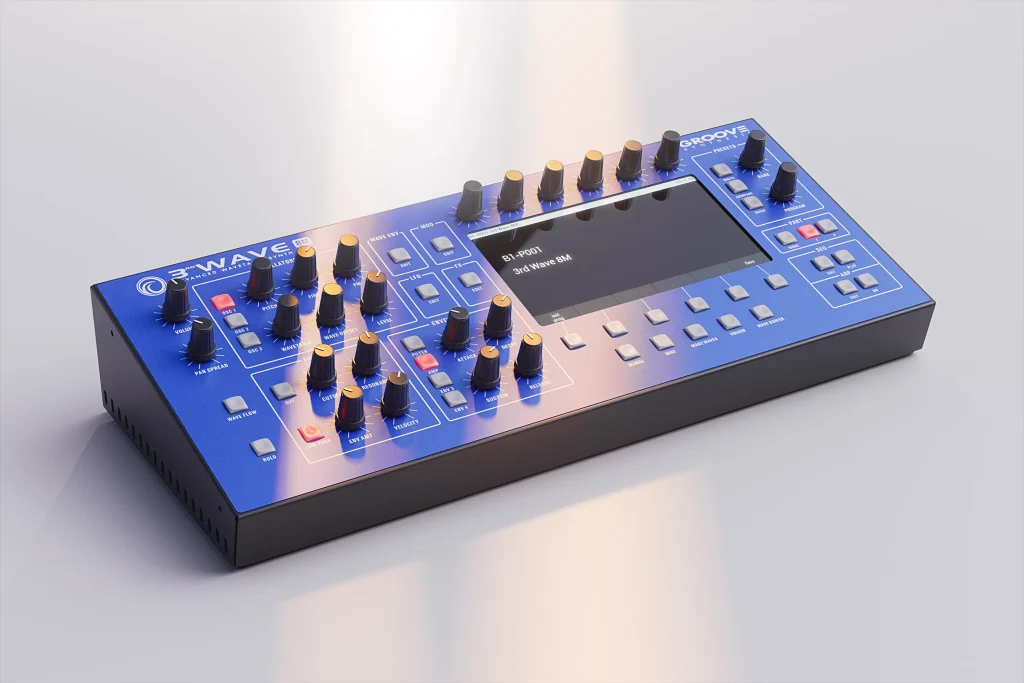

THE MOST ACCESSIBLE WAY TO THE 3RD WAVE SOUND

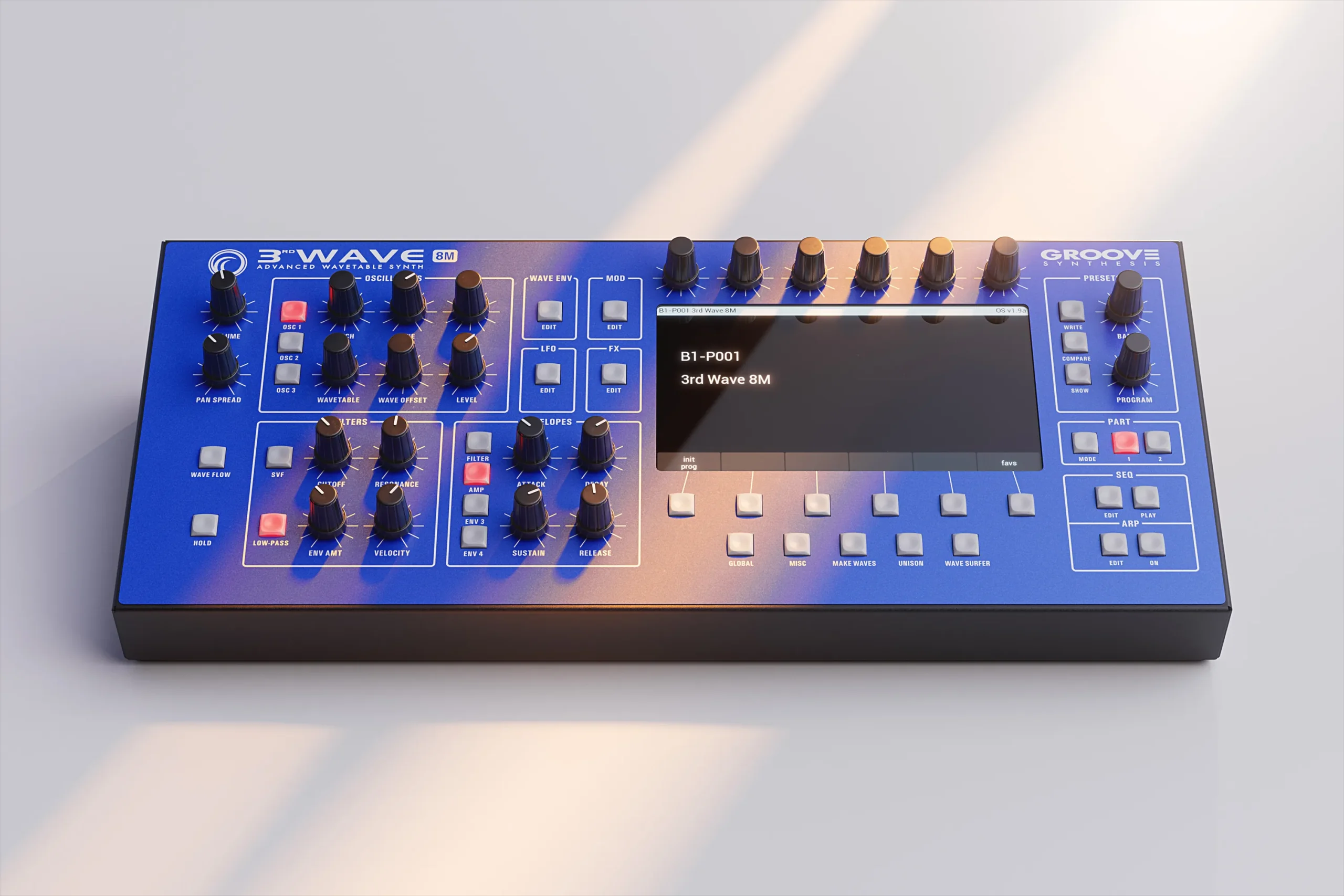

The 3rd Wave 8M puts professional-grade synthesis within reach. This isn’t a watered-down version. This is 8 voices and 2 parts of pure, uncompromised 3rd Wave in a more accessible, compact package. Same premium sound engine, analog filters, and build quality found in our flagship instruments, now in a compact desktop format that fits more budgets and more spaces.
THE ANALOG SIGNAL PATH
What makes a 3rd Wave sound like a 3rd Wave?
It starts with the analog signal path.
Every voice runs through a Dave Rossum-designed 2140 analog lowpass filter with variable saturation, paired with a SEM-style state-variable filter offering lowpass, highpass, notch, and bandpass modes. This is the same signal path that is in our flagship 24-voice instruments.
The DC-coupled output stages deliver low-end power you don’t just hear but feel. Eight voices through this signal path will fill a room.
ACCESS ALL AREAS

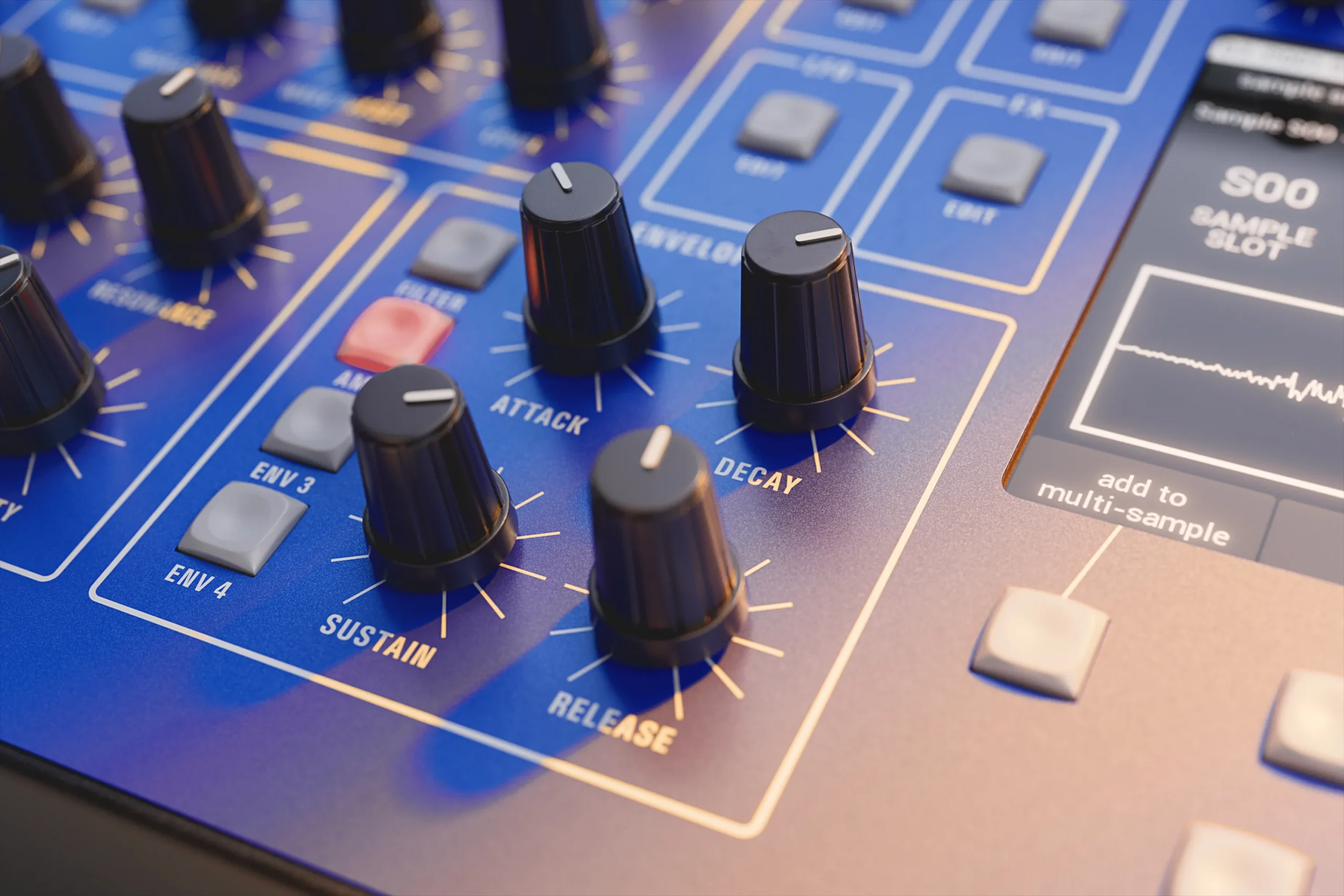

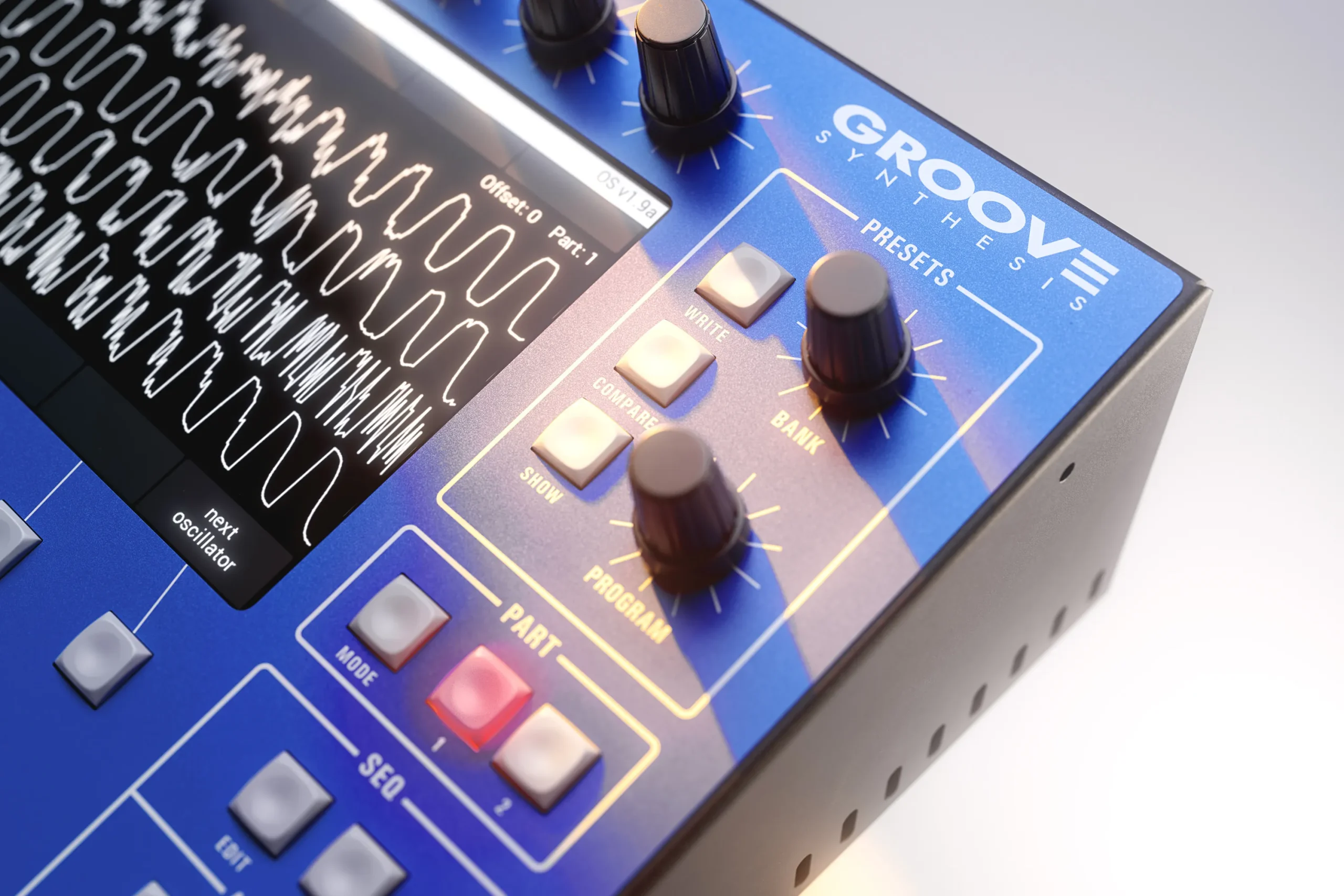

The 8M’s interface focuses on what matters most during performance and sound design.
The streamlined front panel puts essential controls under your hands: oscillator selection, filter cutoff and resonance, envelope controls, effects. Everything you need to shape sound in the moment.
The 7-inch display with six context-sensitive encoders provides more screen space and more simultaneous control than even our flagship models. Navigation is immediate. Deep parameters are accessible without menu-diving.

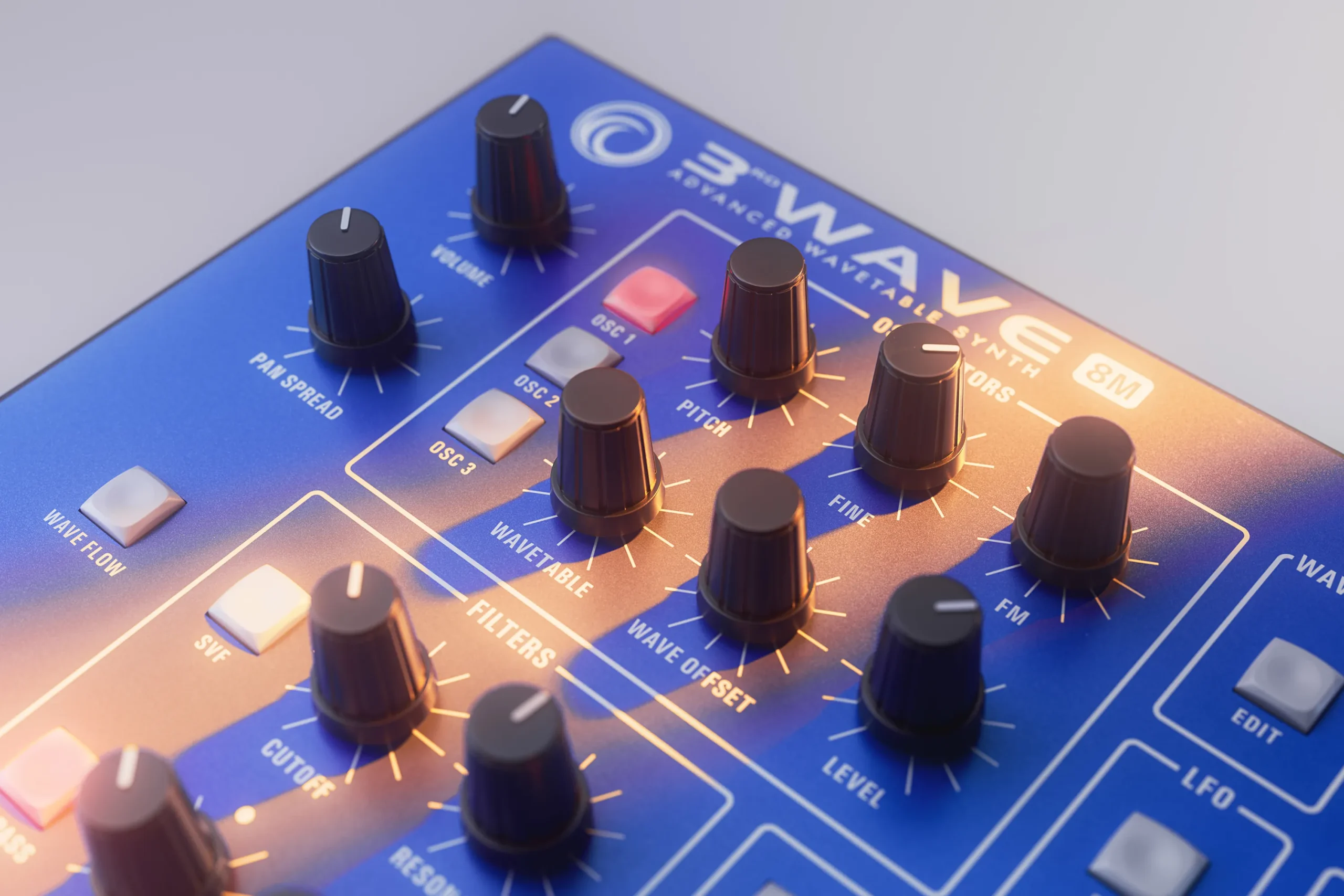

FIVE SYNTHESIS METHODS. ONE COMPACT INSTRUMENT.
The built-in Wavemaker generates custom wavetables from any audio source. Create up to 64 of your own wavetables and save them with your patches.
All five synthesis methods can be combined within a single patch, layered across oscillators to create sounds that would otherwise require multiple instruments.
Each of the 8M’s three oscillators per voice can independently run:
- Classic PPG-era wavetables with the authentic processing chain and imaging character that defined ’80s electronic music.
- Modern high-resolution wavetables with Serum wavetable import capability for contemporary sound design
- Analog-modeled waveforms for classic subtractive synthesis tones
- Three operator linear FM per part for metallic, bell-like, and complex harmonic textures
- Multi-sampling of up to 8 samples across the keyboard.
Hear the groove
PATCH COMPATIBILITY
Every patch created on the 8M loads directly on the 24M and 24K. Start a sound on the road, finish it in the studio. Collaborate with other 3rd Wave owners regardless of which model they have.
Patches from the larger models load on the 8M as well, as long as they only use two parts.
GET THE LATEST GROOVE NOTES
Sign up to get our latest product news, synth tips & artist stories, and special offers to your inbox
BUILT FOR MODERN WORKFLOWS

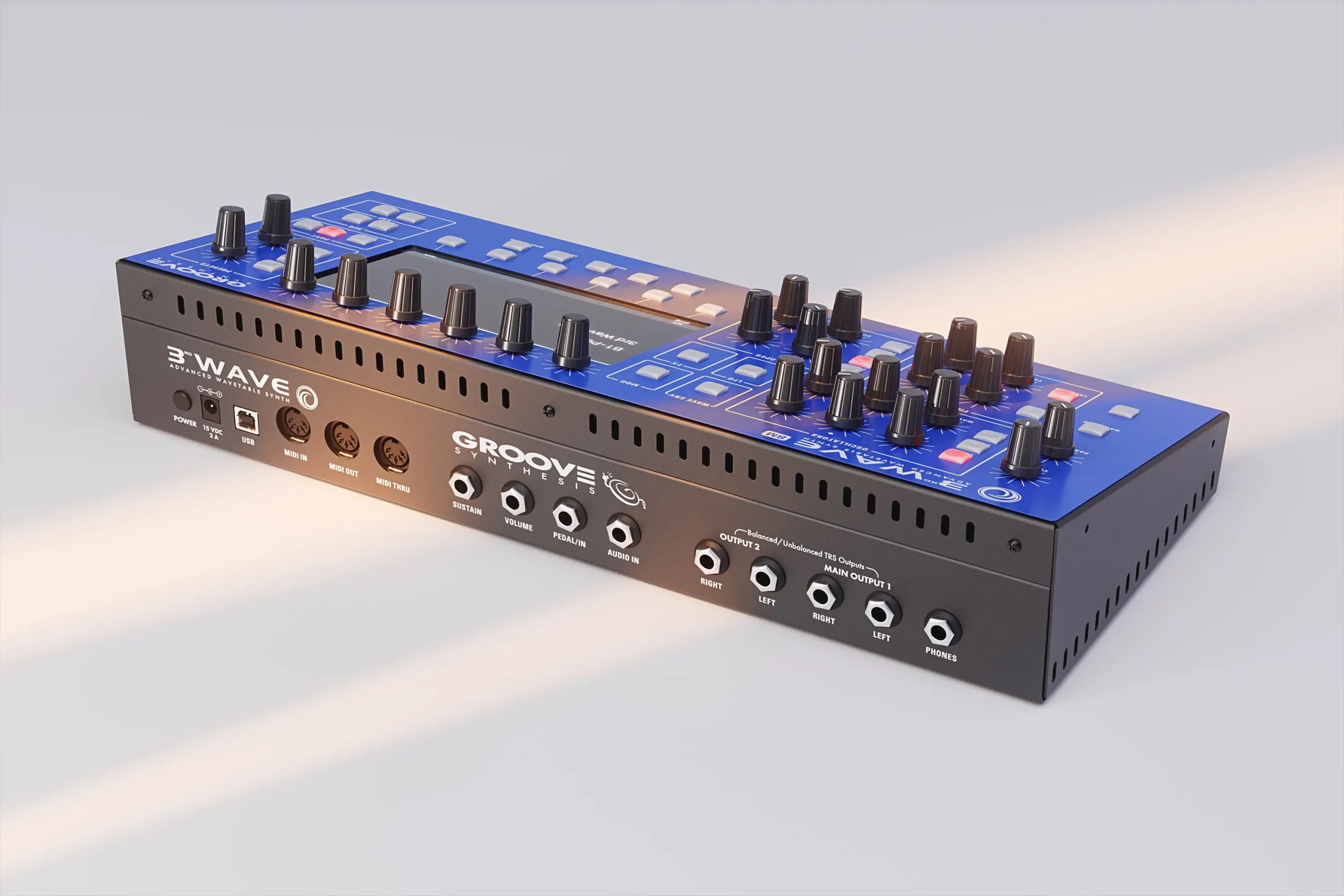

Four balanced outputs handle stereo operation or discrete part routing. Full MIDI I/O via DIN and USB integrates with any setup. MPE and polyphonic aftertouch support capture every nuance from expressive controllers like the Roli Seaboard or the Expressive E Osmose.
The compact desktop format fits where larger synths can’t. On a crowded desk, in a travel bag, or mounted in a rack with the included 19″ ears.
8M DESKTOP SPECIFICATIONS
8 Voices
2 Part Multitimbral
3 High-Res, Multiple Sample Rate, Digital Oscillators Per Voice
- 64 total user wavetable locations with 56 shipping wavetables that contain 64 waveforms per table
- 32 original 8 bit wavetables from the PPG 2 series instruments with room for 16 more user created 8 bit wavetables
- 7 high-resolution modeled analog waveforms (saw, square/pulse, triangle, sine, supersaw, white noise, pink noise)
- Linear FM – 3 Operator
- Sampling. 8 way multi-part. Loopable with seamless cross fading. 35 seconds at full bandwidth
- Oscillator Hard-Sync
- Optional wave flow section: 1. Wavetable interpolation on/off 2. Waveform, (pitch), interpolation on/off 3. PPG Upper Wavetable mode on/off
- Unison mode and chord mode with variable voice count
1 Analog Low-pass Filter
- Dave Rossum designed, classic, 2140 low-pass resonant filter
- 24 db per octave slope
- variable saturation amount
- optional resonance compensation
1 State-Variable Filter
- 12 db per octave slope
- Continuously variable between low-pass, notch, and high-pass, operation with optional band-pass mode
4 ADSR+ Delay Envelopes
- Filter, Amplifier, plus 2 additional envelopes switchable between exponential and vintage PPG-style response
- Freely assignable to multiple modulation destinations
- 6-stage wave envelope per oscillator with variable time and position that can be looped. Can be assigned to any destination
4 Low-Frequency Oscillators
- Triangle, sawtooth, reverse sawtooth, square, pulse 1, pulse 2, pulse 3, and random (S&H)
- Variable delay
- Note reset or free running
- Syncable to master clock BPM
- LFOs can be polyphonic or mono

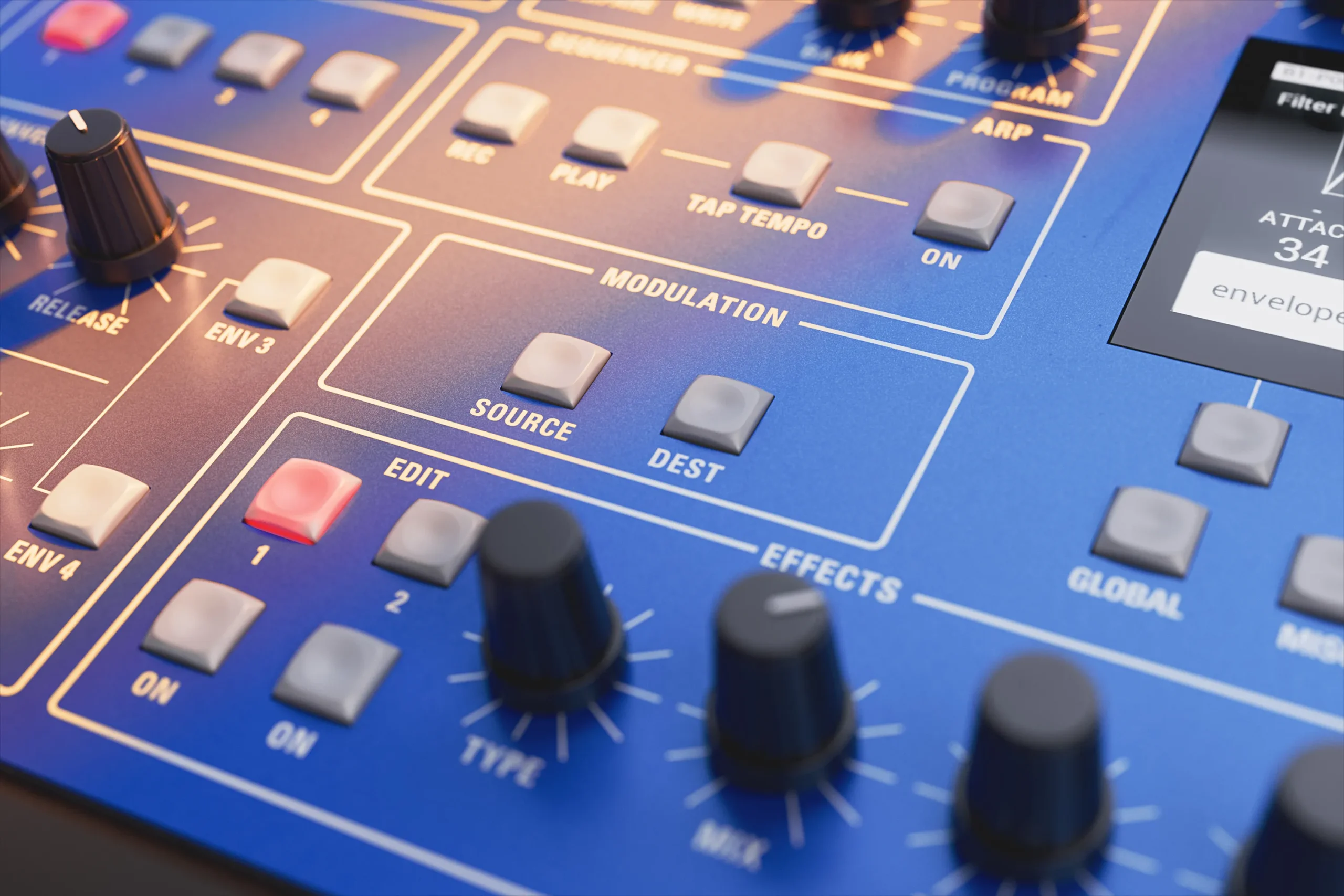

2 digital effects (per part)
- BBD, stereo delay, tape delay, chorus, phaser, flanger, distortion pedal, rotating speaker with tube model, ring mod, room reverb, hall reverb, super plate reverb – Most modeled on famous hardware devices
- Syncable to master clock BPM
- Parameters modulatable via mod matrix
Built-In Custom Wavetable Maker
- “Sample-to-wave” functionality. Connect an audio source to the 3rd Wave’s Audio In port, press “Make Waves” and the audio is analyzed to create a custom wavetable
- Audio to convert is brought in as a 96 kHz wav file through USB
- Store up to 64 custom wavetables
- 64 waveforms per wavetable
- Accepts pitched or un-pitched material as input
- 96 kHz sampling rate
- 16, 24, or 32-bit resolution
- Audio up to 20 seconds can be analyzed
- Imports Serum™ wavetables
Pattern based with song mode
- Performs both Note and Parameter Sequencing
- 2 parts per sequence
- 24 patterns per 3rd Wave program
- Up to 32 measures per sequence
- Variable quantization resolution per sequence (32nd, 16th, 8th, quarter, half, whole note, or quantization off), that is settable in real time
- Variable swing
1 Arp per Multi-part
- Up, down, up/down, assign modes, and random
- Variable range (1, 2, or 3 octaves)
16 slot modulation matrix with 30 mod sources and 127 mod destinations
- 12 additional fixed-source mod paths with the same number of sources and destinations
- Modulation assignment buttons enable quick and easy modulation routing
- Mod Matrix runs at audio rates
- Sequencer can record and play mod parameter changes in real time

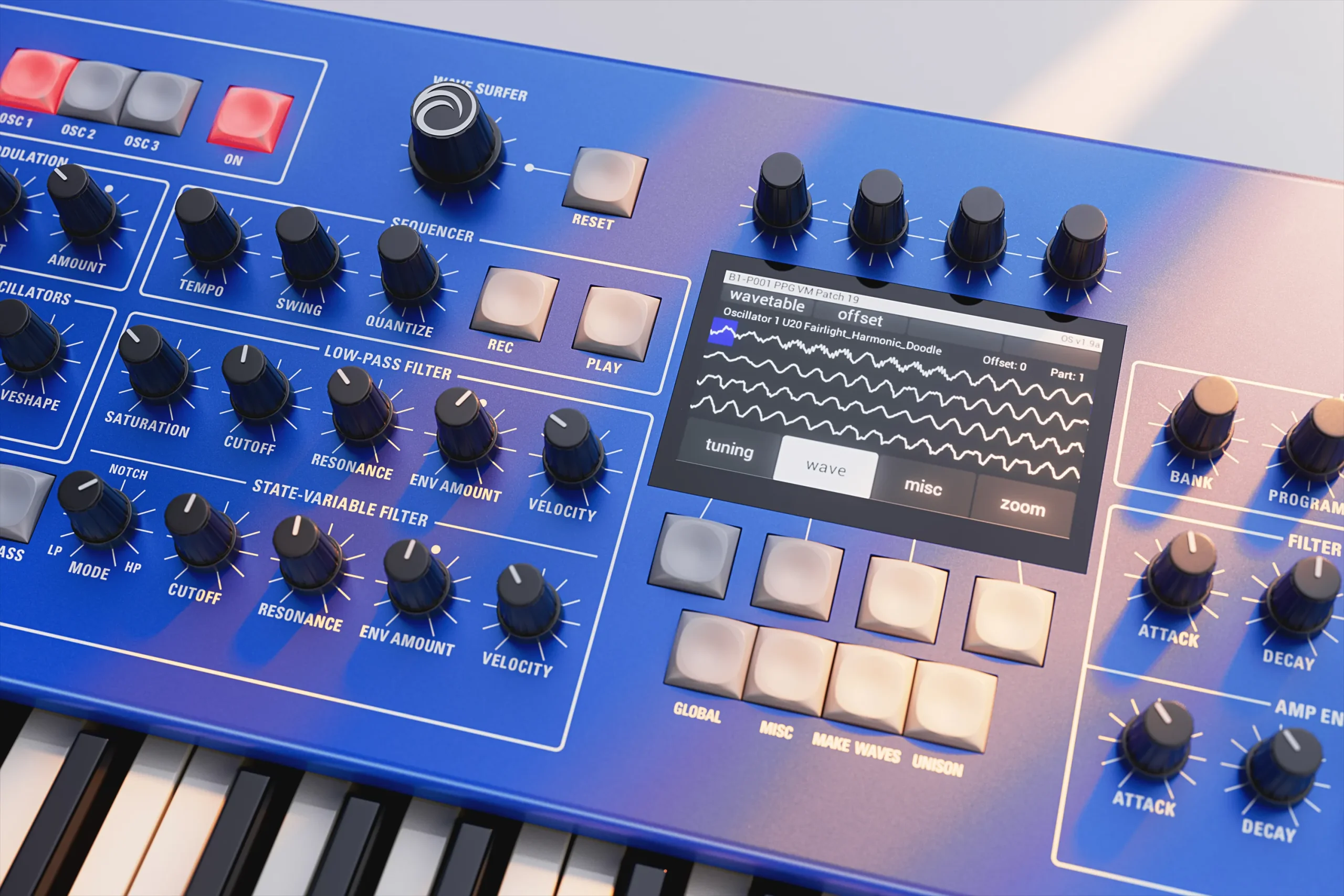

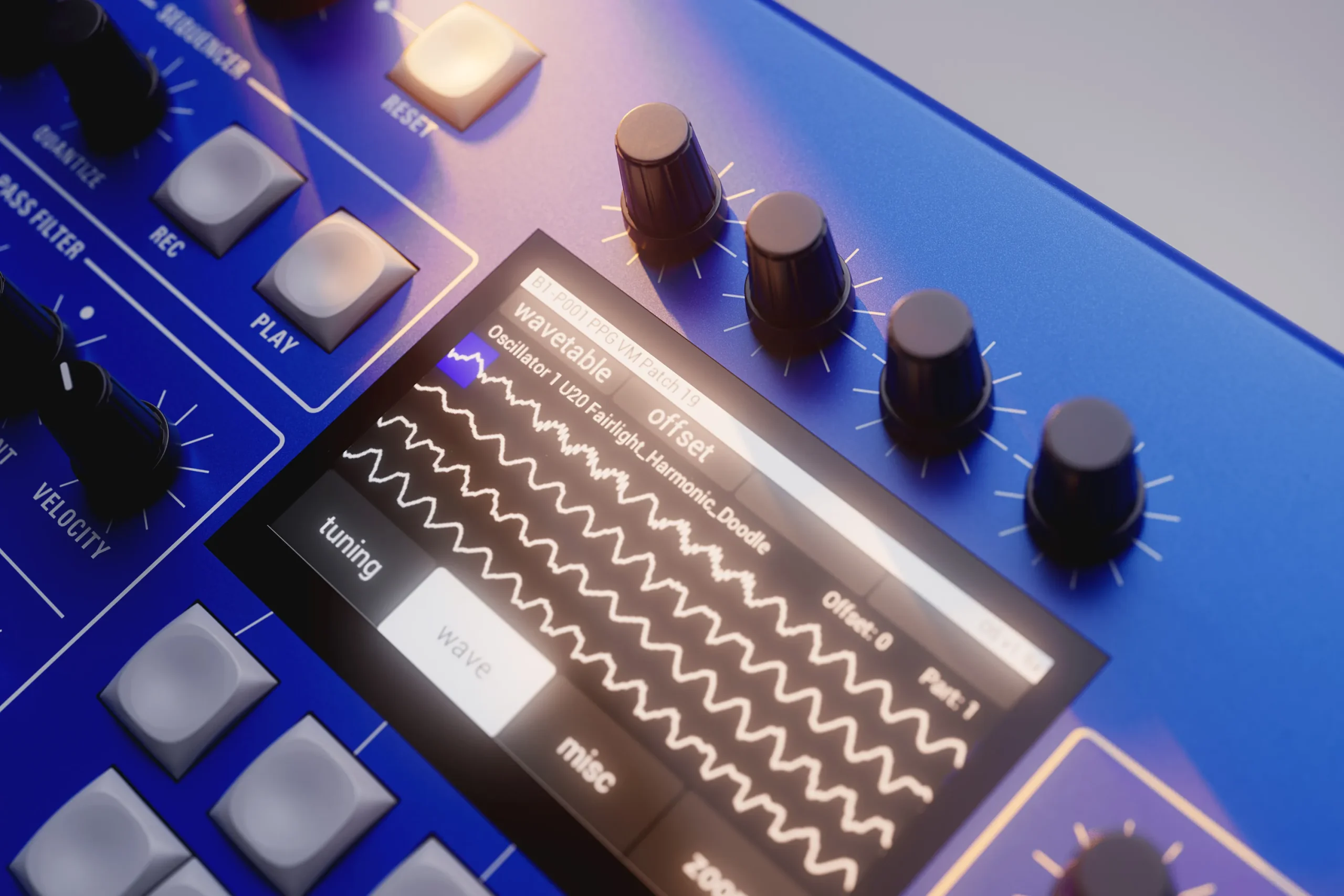

24 knobs and 36 buttons with a 7 inch display and 6 encoders. Complete editing with knob per function for performance controls
- Responds to polyphonic after touch
- Responds to MPE (MIDI Polyphonic Expression)
450 factory programs with 500 total rewritable locations

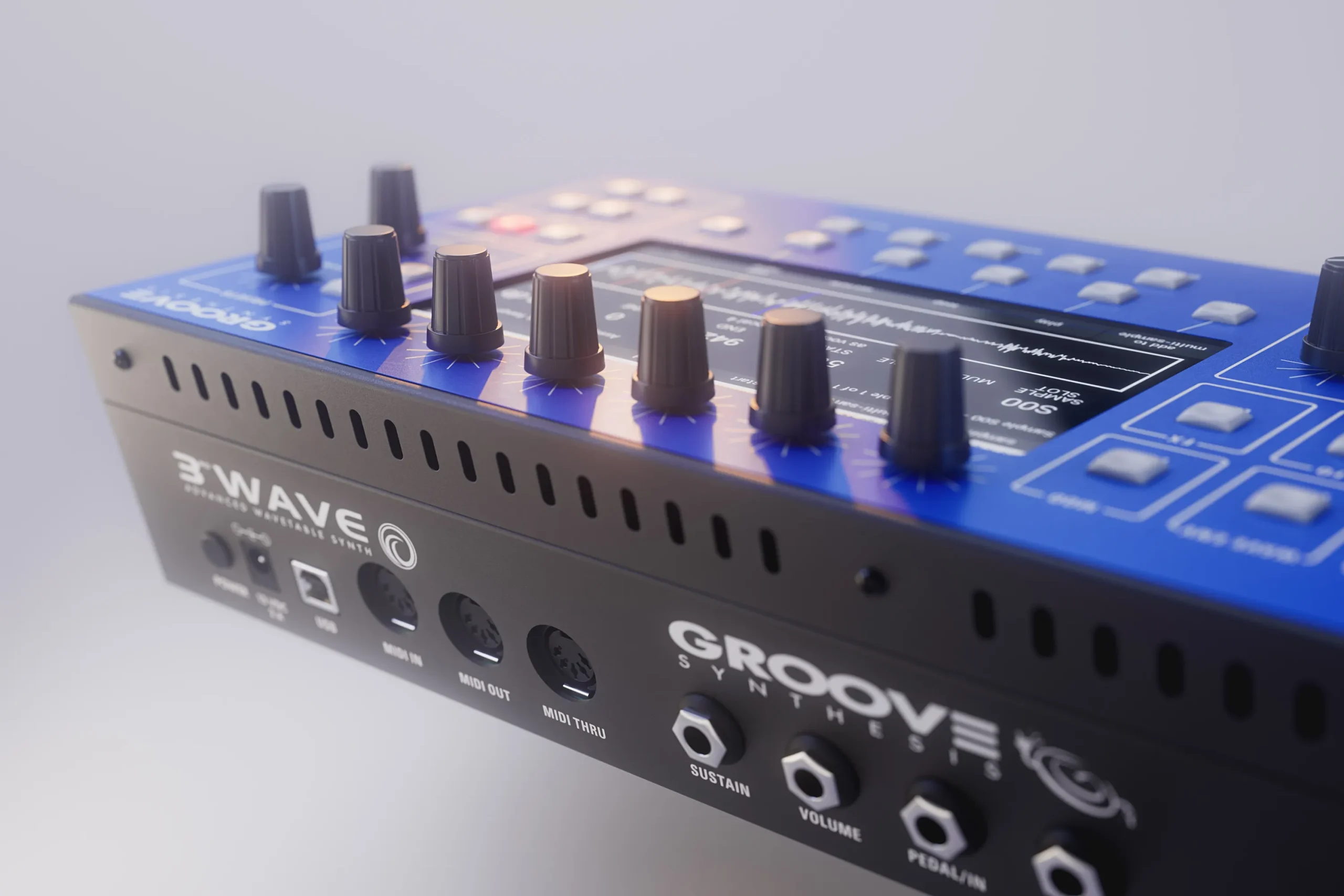

2 Balanced/Unbalanced Stereo outputs (2x 1/4″ phone jack per part)
- Headphone out (stereo 1/4″ phone jack)
- MIDI In, MIDI Out, and MIDI Thru
- USB port for bidirectional MIDI communication
- Audio Input for creating user wavetables from external audio source (1/4″ phone jack). Audio Input can also route audio through the filters, Output chain, and effects
- Sustain/footswitch input
- Volume pedal input
- Expression pedal input
External universal input power supply (100-240V) 15 volt 45 watts
Shipping Box Dimmensions Imperial Units: 21” x 12” x 8” inches
Shipping Box Dimensions Metric: 53 cm x 29 cm x 20cm
Shipping Weight Imperial Units: 10.5 lbs
Shipping Weight Metric: 4.8 kg
Yes, Rack Ears Included
SUPPORT Resources
Still got questions? Visit our support page for more resources such as product manuals, software downloads, and FAQs.
